The Ultimate Guide to Swiss Turning: What is a Swiss Lathe & Why It Matters for Precision Parts
The Ultimate Guide to Swiss Turning: What is a Swiss Lathe & Why It Matters for Precision Parts
Discover what a Swiss lathe is and how Swiss turning offers unmatched precision for small, complex parts. Learn about guide bushings, CNC Swiss machining benefits, and why Jiakun Swiss lathes are the preferred choice for medical and aerospace industries.
What is a Swiss Lathe? (Understanding the Basics)
A Swiss lathe, also known as a Swiss-type lathe or Swiss screw machine, is a specialized CNC machine engineered for high-precision machining of small, complex, and slender parts.
Unlike conventional lathes, a Swiss lathe uses a sliding headstock and a stationary guide bushing. This unique design allows it to perform multiple operations—such as turning, milling, drilling, and threading—simultaneously in a single setup. Originally developed for the Swiss watchmaking industry, it has now become the gold standard for manufacturing components in the medical, aerospace, and electronics sectors.

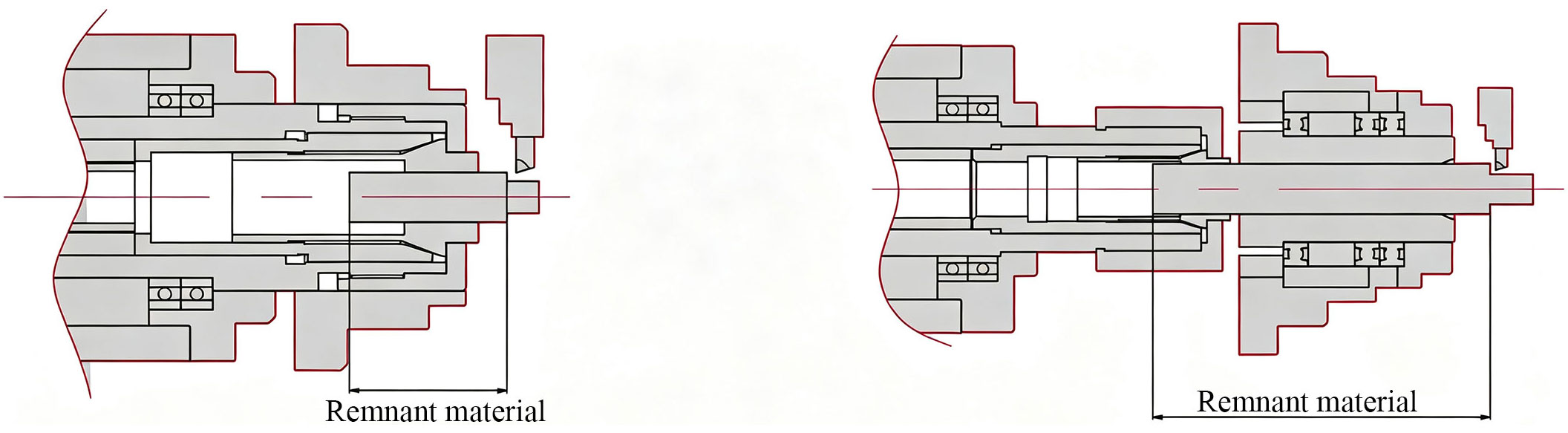

How Swiss Turning Works: The Power of the Guide Bushing
The fundamental difference between Swiss turning and conventional turning lies in workpiece support.
• Conventional Lathe: The workpiece is held by a chuck, and the cutting tool moves along the piece. For long, thin parts, this often leads to vibration and tool deflection.

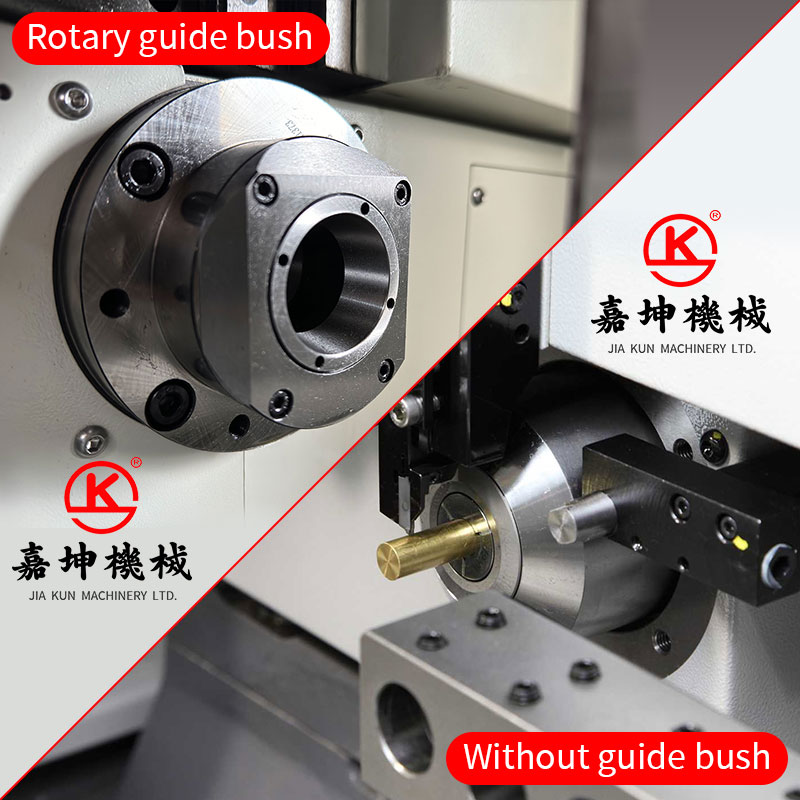

• Swiss Lathe: The workpiece moves axially through a guide bushing, which supports the material extremely close to the cutting tool.
Why this matters: Because the cutting happens just millimeters from the support point, the workpiece remains incredibly stable. This "zero-vibration" environment allows for tolerances as tight as 0.0001" (0.0025mm) and superior surface finishes.
Key Benefits of CNC Swiss Machining
Why are industry leaders switching to Swiss turning? Here are the primary advantages:
• Extreme Precision: The rigid support system eliminates deflection, ensuring every part matches the exact design specifications.
• Reduced Cycle Time: With multi-axis capabilities and live tooling, Swiss machines can perform multiple operations at once, doubling productivity compared to traditional methods.
• Minimal Material Waste: Higher precision means fewer errors and less scrap, directly reducing your production costs.
• One-Stop Production: Complex parts come off the machine finished, often requiring no post-processing or secondary operations.
Swiss Turning vs. Conventional Turning: At a Glance
|
Feature |
Swiss Lathe (Jiakun) |
Conventional Lathe |
|---|---|---|
|
Support Method |
Sliding headstock + Guide bushing |
Fixed chucking |
|
Part Geometry |
Ideal for long, slender, complex parts |
Best for short, large diameter parts |
|
Precision |
High (up to 0.0001") |
Standard |
|
Productivity |
High (Simultaneous multi-tasking) |
Moderate (Manual tool changes) |
|
Applications |
Medical, Aerospace, Watchmaking |
General industrial components |

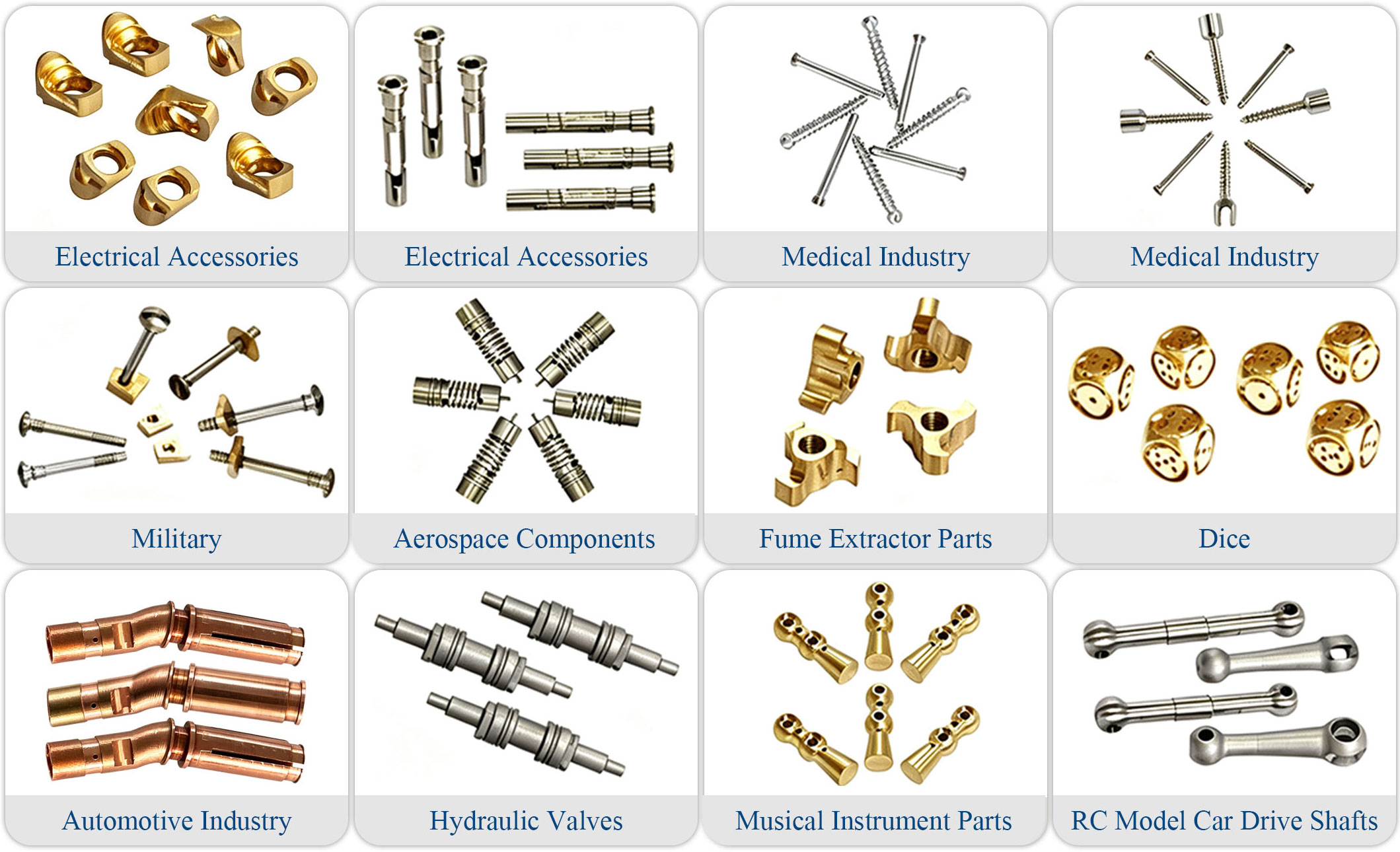

Versatile Material Applications
Jiakun CNC Swiss machines are compatible with a wide range of materials, including:
• Metals: Stainless Steel, Titanium (medical grade), Brass, Aluminum, and Copper.
• Plastics/Polymers: PEEK, Delrin, and Nylon.
• Advanced Composites: Carbon fiber and fiberglass.
Note: Very brittle materials like high-carbon steel require specialized tooling to prevent wear.

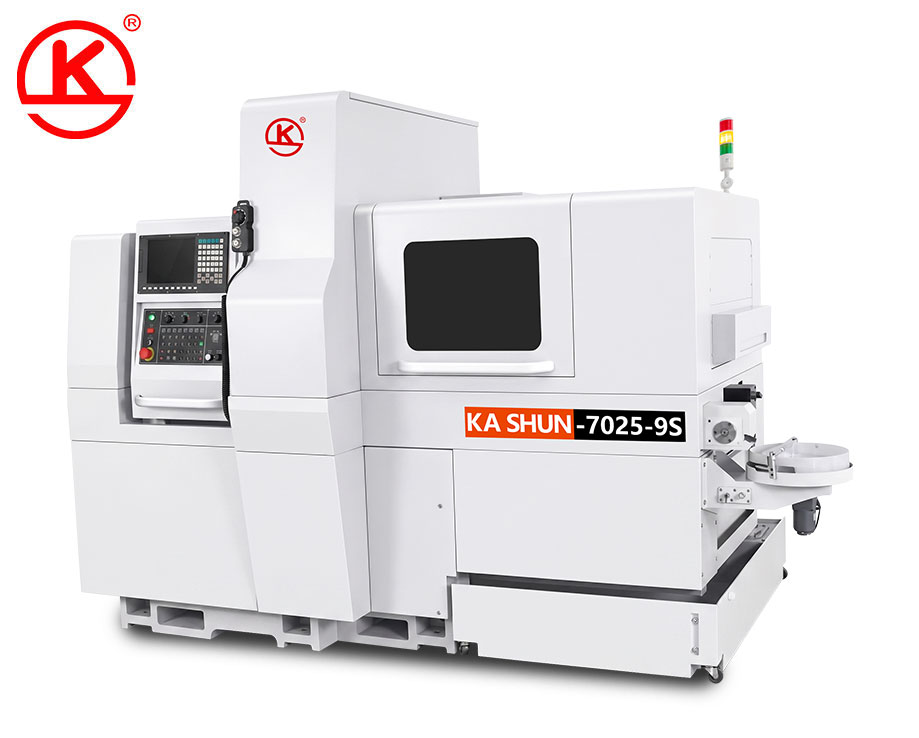

Why Choose Jiakun Precision Swiss Lathes?
At Jiakun Machinery, we combine decades of mechanical expertise with advanced Japanese and Taiwanese technology. Our Swiss-type lathes are designed for:
• Maximum Stability: Utilizing heavy-duty beds and high-resolution encoders.

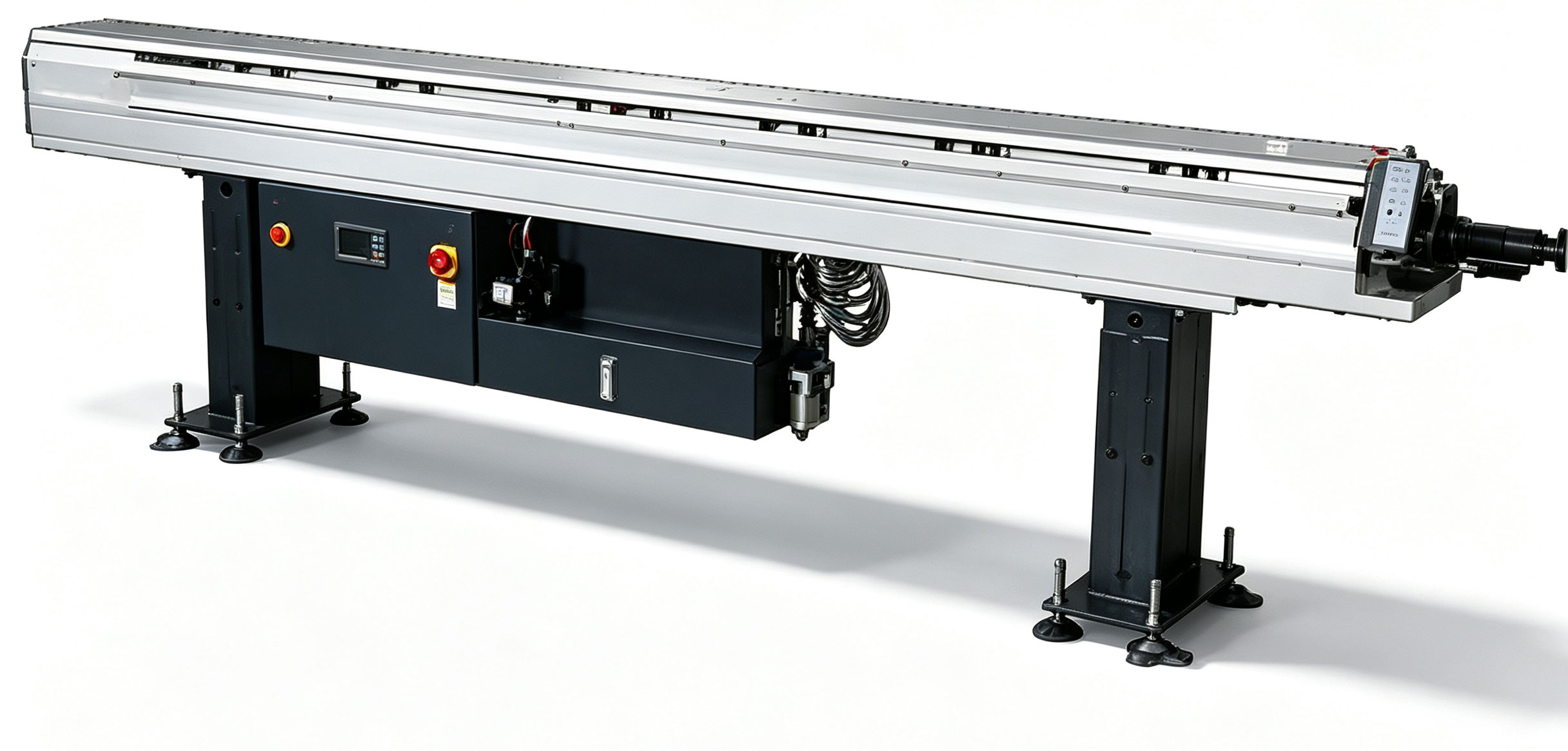

• Automation Ready: Equipped with automatic bar feeders for 24/7 continuous operation.
• Global Reliability: Widely used across Southeast Asia, China, and Europe for critical mission applications.
