Double-End Facing & Chamfering Machine for Round & Oval Tubes: High-Volume End Processing for Precision Piping
Double-End Facing & Chamfering Machine for Round & Oval Tubes: High-Volume End Processing for Precision Piping
In the production of structural bicycle components—such as seat posts, handlebars, frame tubes, and suspension components—the quality of raw tube cutting sets the stage for all downstream welding and assembly operations. When metal tubes are sawed or sheared to length, they often leave uneven end faces, sharp burrs, or slightly distorted edges. Processing these tube ends one side at a time on individual lathes is slow, costly, and introduces length deviations that compromise structural integrity.
To eliminate these processing inefficiencies, JIA KUN Machinery has engineered the Double-End Facing & Chamfering Machine for Round & Oval Tubes. Built explicitly for high-volume mass production, this advanced machine performs simultaneous facing and precision chamfering on both ends of a tube in a single operation, ensuring exceptionally flat surfaces, uniform edge finishing, and perfect length consistency.

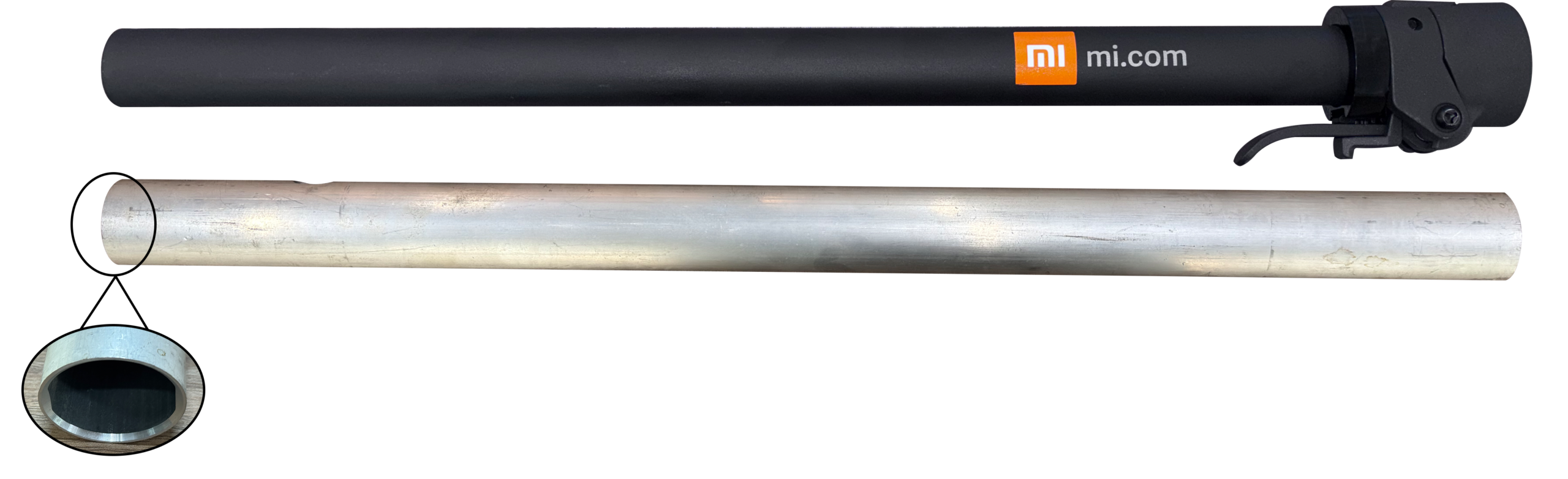

Round tube / Oval tube
Technical Core: Simultaneous Dual-End Processing for Irregular Profiles
Traditional chamfering machinery is often restricted to standard round profiles and struggles with the non-circular profiles common in modern aerodynamics. JIA KUN's solution introduces an advanced approach to profile processing:
Simultaneous Both-Ends Machining: Equipped with dual synchronized tool spindles that approach from both left and right directions, the machine mills, faces, and chamfers both ends of the workpiece at the exact same time. This locks in the total cut length and guarantees that both faces are perfectly parallel.
Flawless Processing of Round and Oval Tubes: The machine incorporates specialized, self-centering clamping fixtures designed to hold not only standard round tubes but also complex oval, teardrop, or hydroformed structural shapes without scratching pre-finished metal surfaces.
Ultra-Stable Heavy-Duty Architecture: Engineered for continuous, industrial-scale deployment, the machine features a massive, rigid structural base and an external high-efficiency hydraulic/pneumatic power pack. This heavy-duty build delivers high clamping and feeding force while damping mechanical harmonics.
Key Performance Benefits for Structural Tube Manufacturers
1. Drastic Cycle Time Reduction
By processing both ends simultaneously rather than flipping and resetting the part manually, you immediately slash processing cycle times by up to half per tube. This rapid cycle optimization unlocks immense daily throughput, allowing factories to keep up with fast-moving robot welding lines.
2. Micro-Level Product Consistency
With uniform hydraulic feeding and absolute rigid mechanical paths, the depth of the chamfer (internal, external, or face) remains perfectly identical across hundreds of thousands of parts. This extreme batch consistency eliminates variations that cause weld gaps, manual rework, or assembly friction down the line.
3. Quick-Change Modular Design
Bicycle designs evolve quickly, and a line needs to pivot between handlebar diameters, seat tube lengths, and oval frame profiles. JIA KUN’s design utilizes quick-change modular insert plates and an adjustable spindle track, allowing your setup operators to rapidly reconfigure lengths and diameters with minimal production downtime.
Specifications & Process Capabilities
Application: High-speed precision facing, outer chamfering, and inner deburring of round, oval, and shaped bicycle metallic tubes.
Material Compatibility: Aluminum alloys (6000/7000 series), carbon steels, stainless steel, and alloy steel tubing.
Control Architecture: Integrated industrial PLC control cabinet with a tactile operator interface for fast program setup.
Safety Integration: Full front sliding safety doors with integrated inspection windows and dynamic light curtain integration to protect operator zones.
Elevate Your Tube Prep and End-Finishing Workflow with JIA KUN
Don't let legacy, single-ended processing methods throttle your factory's daily output. The JIA KUN Double-End Facing & Chamfering Machine provides the speed, flexibility, and precise geometric accuracy needed to feed high-performance bicycle manufacturing lines.
🛠️ Request a Custom Profile & Tooling Evaluation
Let our applications team configure the ideal machining setup for your production lines. To help us build a tailored quote, please share:
Tube Cross-Section Drawings (Round diameters, oval profiles, wall thicknesses).
Minimum and Maximum Tube Component Lengths
Material Grade Specifications (e.g., Extruded Aluminum, Steel).
Target Hourly or Daily Output Goals.
📩 [Contact JIA KUN Machinery's Engineering Team Today]
