Fork SDU Servo Pressing & Reshaping Machine: Precision Assembly for High-End Bicycle Suspension
Fork SDU Servo Pressing & Reshaping Machine: Precision Assembly for High-End Bicycle Suspension
In the competitive landscape of high-end mountain bike (MTB) and e-bike manufacturing, suspension performance determines a brand's reputation. The front fork outer leg assembly houses critical components that require absolute linear alignment and precise structural tension. Any slight misalignment during the assembly phase leads to stiction, rough travel, and premature wear of the suspension stanchions.
To address these stringent quality standards, JIA KUN Machinery has engineered the Fork SDU Servo Pressing & Reshaping Machine. Built on a heavy-duty, ultra-stable frame and driven by an advanced all-servo system, this machine is custom-engineered for automated mass production, delivering micron-level precision that legacy hydraulic systems simply cannot match.

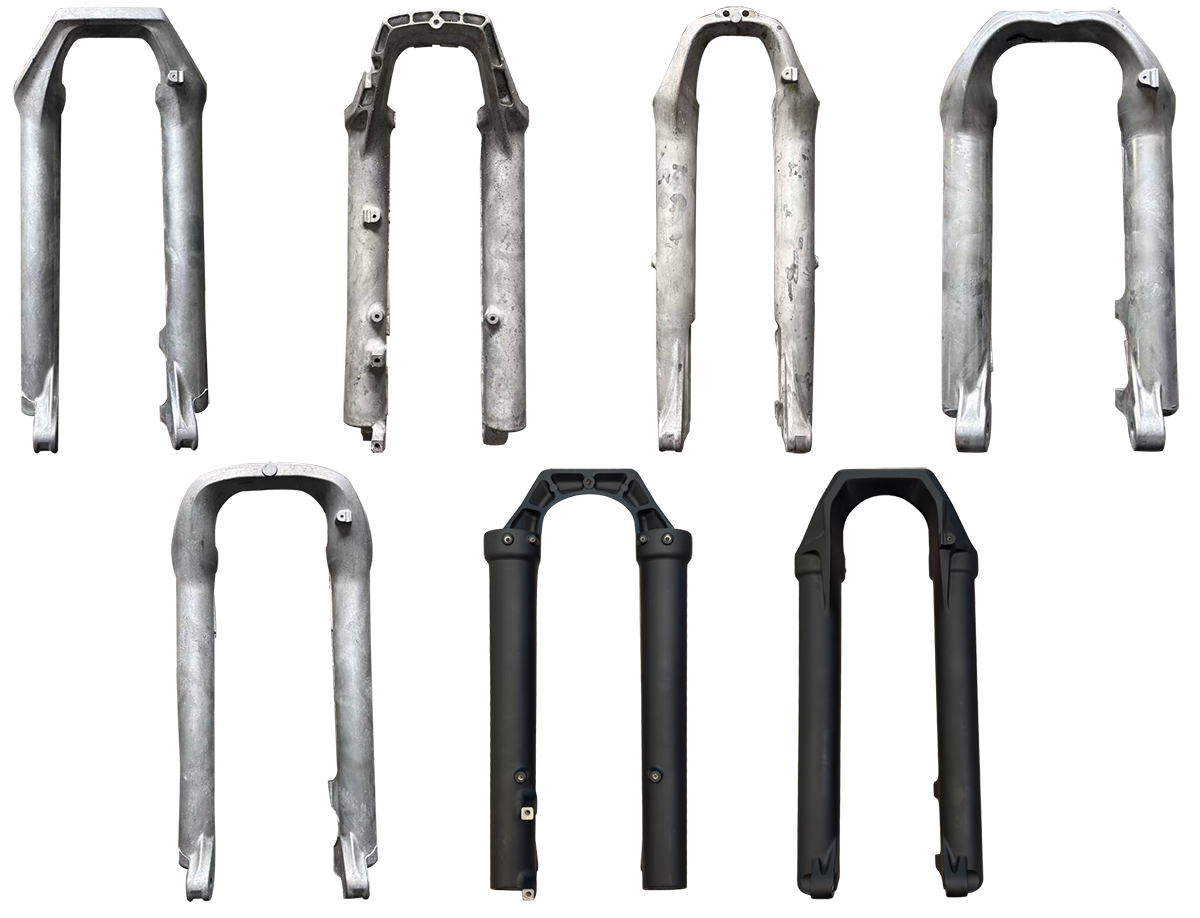

Lower Legs
Technical Core: All-Servo Drive for Micron-Level Precision
Traditional assembly methods rely on hydraulic or pneumatic cylinders to press internal components into the fork's outer legs. These older methods suffer from force fluctuations due to oil temperature changes and lack real-time depth feedback.
The JIA KUN Fork SDU Servo Pressing Machine completely revolutionizes this process:
Real-Time Force & Displacement Monitoring: Utilizing an all-servo drive system coupled with high-resolution encoders, the machine constantly monitors the relationship between force and displacement. This prevents over-pressing and protects delicate magnesium or aluminum alloy outer legs from micro-cracking.
Tension Reshaping Technology: Beyond mere press-fitting, the machine performs a synchronized tension reshaping operation. This process ensures that the internal bore and seating tolerances of the outer leg achieve perfect concentricity, drastically reducing stiction when the upper tubes are inserted.
Universal Compatibility (26 to 29 Inches): The tooling and software are designed with rapid-change parameters, allowing seamless compatibility with mainstream wheel-size standards including 26-inch, 27.5-inch, and 29-inch front fork configurations.
Key Performance Benefits for OEM/ODM Factories
1. Significant Boost in Assembly Yield
By transitioning from manual or unregulated hydraulic presses to servo-controlled actuation, factories eliminate human error and force drift. The machine detects any out-of-tolerance component sub-assembly instantly, ensuring that 100% of finished forks meet strict OEM quality thresholds before moving to final oil filling.
2. Heavy-Duty Frame for Long-Term Rigidity
High-precision pressing requires a foundation that resists structural deflection. JIA KUN builds this machine using an ultra-stable, stress-relieved heavy-duty frame. This structural rigidity minimizes mechanical vibration, maintaining tool alignment across consecutive high-volume production shifts.
3. Smart CNC Control Interface
Equipped with an industrial CNC controller and a user-friendly HMI touchscreen panel, operators can easily save and load specific processing recipes for different fork profiles. The interface provides clear visual data graphs of each pressing cycle, making quality trace-tracking straightforward for factory managers.
Specifications & Process Capabilities
Application: High-end bicycle and e-bike suspension front fork outer legs.
Component Kit Compatibility: Specialized SDU internal component kits.
Drive System: Fully automated multi-axis AC Servo Drive system.
Frame Structure: High-mass, reinforced heavy-duty welded steel structure.
Safety Features: Integrated side safety mesh, dual-button start activation, and immediate emergency stop integration.
Optimize Your High-End Fork Assembly Line with JIA KUN
If your facility is scaling up production for premium mountain bike forks or high-torque e-bike suspension systems, manual pressing is no longer viable. The JIA KUN Fork SDU Servo Pressing & Reshaping Machine provides the speed, repeatability, and structural data feedback required by top-tier global bicycle brands.
📈 Request a Technical Quote & Layout Consultation
Let our application engineers evaluate your production targets. To receive a customized tooling quote, please provide:
3D CAD files or technical drawings of your fork outer legs and SDU kits.
Material specifications (e.g., Magnesium alloy, Aluminum 6000/7000 series).
Your required cycle time or daily volume targets.
📩 [Contact JIA KUN Machinery's Engineering Team Today]
