Rigorous Lifecycle Simulation: Evaluating Structural Fatigue Strength on Core Bicycle Components via Dual-Module Servo Dynamics
Rigorous Lifecycle Simulation: Evaluating Structural Fatigue Strength on Core Bicycle Components via Dual-Module Servo Dynamics
In the high-performance bicycle manufacturing industry—spanning professional mountain bikes (MTB), long-range gravel frames, and high-velocity electric mobility (E-Bike) platforms—structural fatigue testing is non-negotiable. Critical steering and support components like handlebars, front suspension forks, and adjustable dropper seatposts act as the primary structural links between the rider and the terrain. These large-scale components must endure relentless, high-amplitude cyclic loading, aggressive leverage torque, and intense structural vibration without showing material degradation or cracking.
If an uncalibrated design flaw, a micro-void in a welded casting, or an uneven wall thickness variation in an extruded alloy tube slips past front-end inspections, it can lead to catastrophic structural failure on the trail. For tier-one component suppliers, executing continuous, laboratory-grade fatigue testing across disparate standalone benches is slow and inefficient.
To bridge this operational gap and ensure rigorous safety compliance for heavy export markets, JIA KUN Machinery has engineered the Bicycle Dual-Module Dynamic Testing Machine. Utilizing a heavy-duty structural portal framework and dual independent servo cylinders, this advanced machine cell delivers precise, high-frequency life-cycle simulation across multiple component families simultaneously.
Fatigue strength testing formultiple components with one-click curve export.
The Limitations of Traditional Low-Frequency or Disjointed Structural Fatigue Testers
When manufacturing facilities attempt to qualify the structural durability of complex assemblies using outdated pneumatic systems or fragmented single-station test rigs, they face significant operational risks:
Slow, Low-Frequency Cycling: Standard pneumatic testing cylinders are restricted by slow compressed-air cycle limitations, often limited to frequencies below $1\text{ Hz}$. Running a standard ISO-compliant 100,000-cycle structural durability verification test on a front fork can take days, stalling your time-to-market.
Inconsistent Waveform Reproduction: Pneumatic actuators lack precise closed-loop trajectory feedback. They apply a harsh, blunt force pulse rather than a smooth, sinusoidal curve, which fails to replicate the variable-amplitude dynamic stresses experienced during real-world trail riding.
Disconnected Single-Component Footprints: Testing a handlebar on one dedicated test stand, a suspension fork on a second rig, and a seatpost on a third unit consumes excessive floor space. This disjointed layout drives up laboratory footprint costs and complicates test management.
Fragmented Data Logging and Lack of One-Click Export: Older testing systems lack serialization integration. When international B2B buyers demand comprehensive, high-resolution load-versus-cycle charts to prove compliance with EN or ISO safety protocols, compiling decentralized files is incredibly slow.
JIA KUN's Solution: High-Frequency Dual-Module Dynamic Load Testing
JIA KUN Machinery’s dynamic fatigue testing center overhauls structural component qualification by merging high-velocity multi-axis mechanical stress simulation with real-time waveform analytics into a unified, heavy-duty workspace:
[Secure Component Fixture Setup] ➔ [Dual Independent Servo Cylinder Tuning] ➔ [High-Frequency Dynamic Load Simulation (Up to 3Hz)] ➔ [Real-Time Closed-Loop Waveform Monitoring] ➔ [One-Click CSV/PDF Curve Data Export]
1. Ultra-Rigid Structural Heavy-Duty Gantry Architecture
The structural backbone of the machine is an oversized, high-mass welded steel gantry portal frame. Engineered to handle continuous, multi-ton high-frequency cyclic loading without micro-flexing, this rigid portal architecture absorbs internal resonance, ensuring that 100% of the force generated by the actuator rams is focused directly into the test workpiece for absolute tracking accuracy.
2. Dual Independent Electric Servo Cylinders
Suspended from the upper adjustable crossbeam are two independent, high-performance electric servo cylinders. Operating completely without messy hydraulic fluids, these precision actuators utilize high-torque closed-loop electric servo direct-drive controllers to generate high-frequency dynamic loading up to 3Hz. Because each cylinder acts completely independently, factories can configure the system to execute parallel testing protocols or test separate component zones simultaneously.
3. Smart Multi-Component Workholding Platform

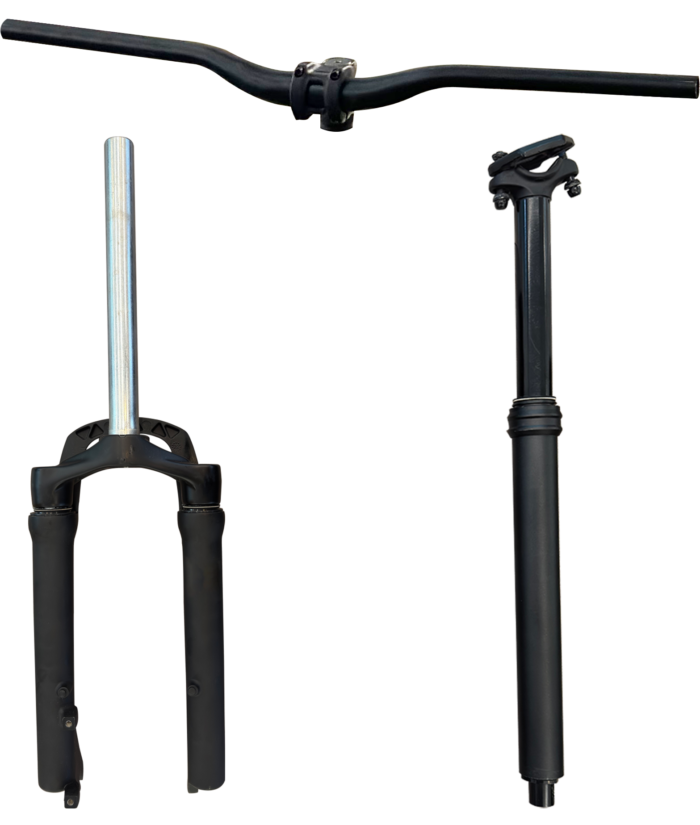

The heavy-duty slotted baseplate is engineered for versatile layout flexibility, supporting quick-change, non-marring workholding fixtures tailored for oversized premium components:
Handlebars: Dual-point opposing vertical cycles to evaluate cyclic fatigue across the clamping section and drops.
Front Suspension Forks: Multi-angle leg compression and crown-steering column fatigue profiles.
Dropper Seatposts: Angled cantilever load cycles to simulate intense, repeating rider weight distribution shifts.
4. Real-Time Waveform Monitoring & One-Click Curve Export
Managed by an advanced industrial CNC processing module, the machine displays live, high-resolution sinusoidal, square, or customized force waveforms on the integrated HMI touchscreen controller. The system automatically cross-checks current load-cell inputs against your preset threshold profiles. Once the target cycle count is reached, technical operators can utilize the one-click curve export feature to instantly output comprehensive PDF or CSV test logs directly to an external server or USB flash drive, ensuring smooth international B2B quality auditing.
Key Technical Advantages of the JIA KUN Dual-Module Center
Accelerated Testing Cadence Up to 3Hz: Operating at speeds up to three cycles per second, this system compresses days of traditional testing into just hours, letting your engineering team rapidly validate production batches without bottlenecking lead times.
True Closed-Loop Waveform Precision: The advanced electronic servo mechanism ensures that the applied load path stays perfectly synchronized with target curves, capturing micro-slippage or structural structural yield events the exact millisecond they occur.
Drastic Reduction in Lab Footprint: By housing dual independent high-capacity testing modules inside a single, unified gantry frame, this system effectively replaces multiple standalone machines, maximizing your facility's spatial efficiency.
Clean, Low-Maintenance Electric Engineering: Running entirely oil-free, this system removes the environmental risks, valve clogs, heat drift, and high energy costs associated with traditional hydraulic power units.
Secure Industrial-Scale Compliance with JIA KUN Machinery
Whether your factory floor is scaling up manufacturing for premium dropper seatpost heads, precision inner/outer telescopic tubes, structural bicycle front fork columns, or wide-profile handlebars, JIA KUN Machinery delivers the automated testing equipment your business needs to protect its market share.
Eliminate the risks of unmonitored structural failures and back your component durability with empirical force metrics. Contact JIA KUN Machinery today to consult with our industrial testing engineers, share your target testing specifications, and receive a comprehensive B2B technical assessment for your laboratory upgrade.
