The Mechanics of Milling and Turning
Let's start by understanding the basic processes involved in milling and turning. In milling, the cutting tool rotates and removes material from the workpiece, creating intricate shapes and profiles. This process involves multiple types of movements, including linear movements along different axes and rotational movements of the cutting tool. On the other hand, in turning, the workpiece rotates while the cutting tool removes material to create round shapes like cylinders and cones. This process mainly involves linear movements of the cutting tool along the workpiece. Both processes rely on these movements to achieve their desired results.
CNC milling
Axes of Motion of CNC Mill Center
There are three basic axes of motion for the precision milling center which are X-Y-Z. All these help in explaining the mill's basic movement, concerning an operator facing the machine. The Z-axis represents the movements like up and down of the milling spindle while the X-axis represents the left and right and the Y-axis represents the front and back

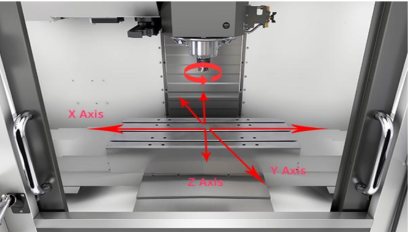

Basic axis of motion for precision milling X-Y-Z
What is micro milling
Specialized small precision milling centers used to create very small and intricate features are called micro milling. In industries like micromechanics, optical, and electronics very small and detailed features are required on miniature milling parts with high tolerance so the micro milling is used there. The multi-axis micro precision milling center is used for advanced milling parts. This micro milling contains 5 axes providing better surface finish and quality. For high control and flexibility of tool movements and orientation micro milling is most demanding.
Difference Between Lathe and Milling
Lathe vs milling are two different manufacturing processes with different functions and applications. A wheel for metal known as a lathe rotates the workpiece when a stationary tool shapes it in a cylindrical shape with great precision and surface finish. The turning center is great for symmetrical work for manufacturing cylindrical shapes such as pins shafts and cylinders. While a precision milling center is used moving tool to shape a milling part in certain directions it helps in creating a contour and flat surfaces. Precision milling center helps in manufacturing complex slots, pockets, and shapes.

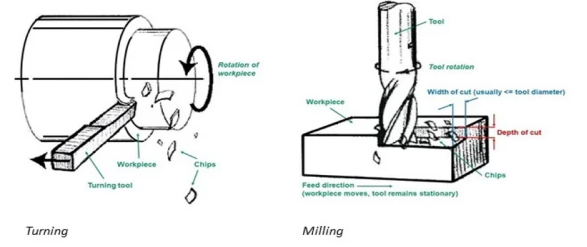

Image showing the difference between Lathe and Milling

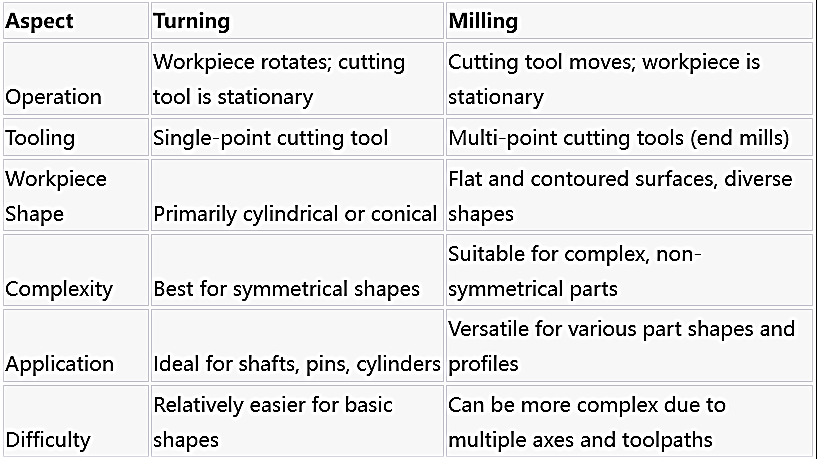

Turning Vs Milling Overview
Tooling and Equipment
The tools used in milling and turning are designed to suit the specific requirements of each process. In milling, a variety of cutting tools can be used, such as end mills, face mills, and ball mills. These tools have multiple cutting edges and can remove material from different angles, allowing for the creation of complex shapes and profiles. In contrast, turning primarily uses single-point cutting tools, such as lathe tools or inserts. These tools have one cutting edge and remove material as the workpiece rotates. The machinery involved in milling includes milling machines, which can range from simple three-axis machines to advanced five-axis machines, while lathes are commonly used for turning.

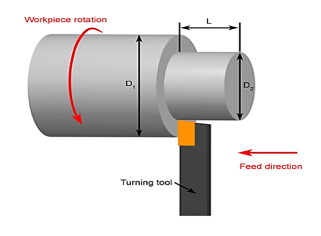

CNC turning machine
Tooling and Equipment

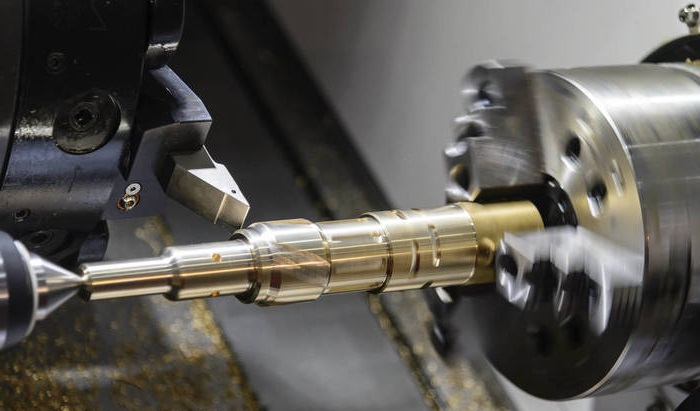

Turning images

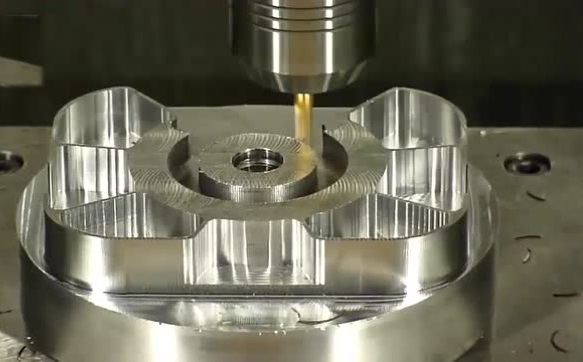

Milling images
Material Suitability
When selecting between milling and turning, it is essential to consider the material being machined. Some materials are better suited for milling due to their hardness or the need for intricate shapes, while others are more suitable for turning due to their ductility or size. For example, milling is typically preferred for materials like steel, aluminum, and titanium, which require complex shapes and profiles. Turning, on the other hand, is often used for materials like brass, copper, and plastics, which can be easily shaped into round geometries. However, advancements in CNC machining have made it possible to mill and turn a wide range of materials, providing greater flexibility in material selection for both processes.
Metals: Brass, Copper, Aluminum, Nickel-based alloys, Titanium, Cast iron, mild steel, stainless steel, tool steel, gold, silver
Plastics: Polyethylene, PVC, Acrylic, Delrin (POM), Polycarbonate, Polypropylene, Nylon
Composite Materials: Fiberglass composites, Carbon fiber composites
Ceramics: Zirconia, Alumina
Wood: maple, oak, pine, cedar
Hard Materials: Inconel, Tungsten, molybdenum, niobium

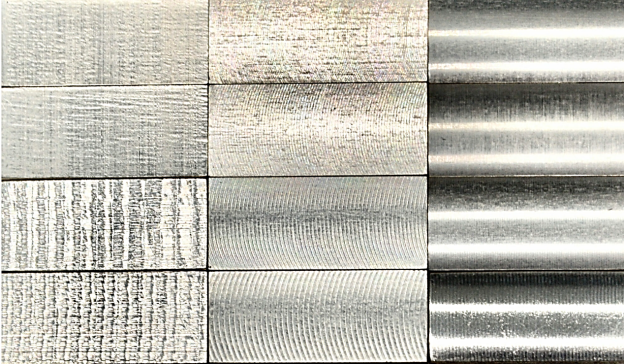

Surface Finish and Precision
Surface finish and precision are important considerations in CNC machining. In milling, the achievable surface finish can vary depending on factors such as tool selection, machine parameters, and material properties. The use of high-quality cutting tools and proper machining techniques can result in excellent surface finishes. Turning, on the other hand, tends to produce smoother surface finishes due to the continuous contact between the cutting tool and the rotating workpiece. The precision level achievable in both milling and turning processes is highly dependent on the machine's capabilities, the quality of the cutting tools, and the skill of the operator. A comparison table below highlights the surface finish and precision levels achievable in milling and turning:
Milling
Surface Finish：Depends on tool selection and machining parameters
Precision：Can achieve high precision with advanced machines
Turning
Surface Finish：Produces smoother surface finishes
Precision：Precision depends on machine capabilities and cutting tool quality
Advances in CNC Milling and Turning
The field of CNC machining is constantly evolving, paving the way for advancements in milling and turning processes. These advancements have significantly improved efficiency, precision, and increased the range of materials that can be machined. Let's explore some recent technological advancements:
High-Speed Machining
Advancements in cutting tool materials and machine design have enabled high-speed machining processes. High-speed milling and turning techniques allow for increased feed rates, reducing cycle times and improving productivity. The use of advanced tool coatings and optimized machine control systems also contributes to improved surface finish and tool life.
5-Axis Machining
Traditional milling and turning processes are limited to three axes of movement. However, advancements in machine design and control systems have led to the development of 5-axis machines. These machines can move the cutting tool along five axes simultaneously, allowing for greater flexibility in complex part geometries and reducing the need for multiple setups and operations.
Automation and Robotics
The integration of automation and robotics has become increasingly prevalent in CNC machining. Automated tool changers, pallet systems, and robotic arms can streamline the milling and turning processes, improving efficiency and reducing human error. This automation also enables lights-out manufacturing, where machines can run continuously without the need for constant human supervision.
