Ball Screws vs Lead Screws: How to Choose the Right Linear Drive for Your CNC Machine

Introduction

Every CNC machine has a simple job at its core: convert the rotation of a motor into precise, repeatable linear movement. Whether the axis carries a cutting tool or moves a workpiece, the component that makes this conversion happen is the linear drive — and in most machines, that drive is either a ball screw or a lead screw.

These two components look similar at a glance, but they are engineered for very different operating conditions. Choose correctly and you get years of accurate, low-maintenance service. Choose wrong and you fight with backlash, premature wear, or a bill for precision hardware your application never needed.

This guide explains exactly how ball screws and lead screws work, where they differ, and how to select the right one for your CNC application.

What Is a Ball Screw?

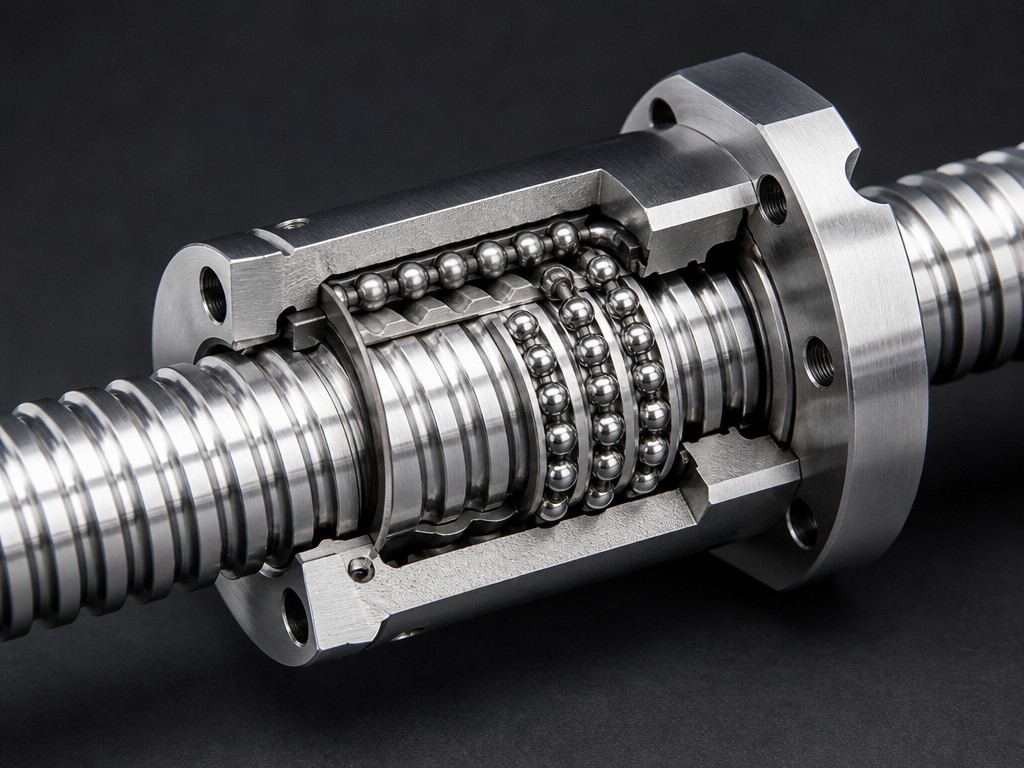

A ball screw is a precision linear actuator that uses recirculating ball bearings to transmit motion between the screw shaft and the nut. Instead of sliding metal on metal, the load is carried by steel balls that roll between helical races machined into the screw and nut. As the screw rotates, the balls roll along the raceway, then recirculate back through return tubes to start the cycle again.

Because rolling friction is dramatically lower than sliding friction, ball screws offer:

• Efficiency of 90% or higher — most of the motor’s power goes into moving the load, not overcoming friction
• Near-zero backlash when using preloaded nuts, making them ideal for bidirectional positioning
• High positioning accuracy — precision grades can hold repeatability in the micrometer range
• Long service life under continuous, high-speed operation

Ball screws are the standard choice for CNC machine tool feed axes, where accuracy and responsiveness are non-negotiable.

What Is a Lead Screw?

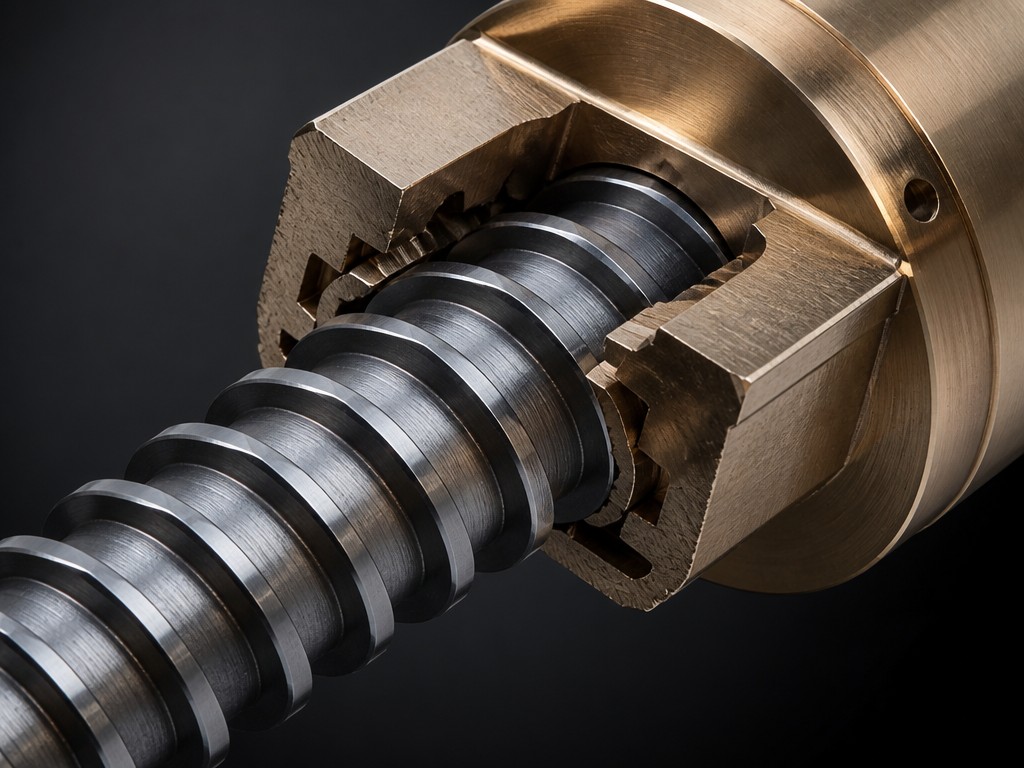

A lead screw (also called a trapezoidal screw or power screw) is the simpler, older design. It consists of a screw shaft with a trapezoidal or Acme thread profile and a matching nut — typically bronze, plastic, or a low-friction polymer. Motion is transmitted through sliding contact between the thread surfaces.

This design has its own advantages:

• Simple, rugged construction with low initial cost
• Self-locking in many configurations — the screw holds position without a brake when the motor stops, which is valuable in vertical applications
• Good vibration damping thanks to the sliding contact
• Easy to maintain and replace — components are inexpensive and widely available

However, sliding friction limits lead screws to roughly 30–60% efficiency, and wear gradually increases backlash over time.

Key Differences at a Glance

Ball Screw Pros and Cons

Pros

• Superior precision: Preloaded ball nuts eliminate backlash, so reversing direction doesn’t introduce lost motion — critical for contouring and tight-tolerance machining.
• High efficiency and speed: Less friction means less heat, allowing higher traverse speeds and smaller servo motors for the same load.
• Long-term consistency: Precision-ground or rolled ball screws hold their accuracy far longer under continuous production.
• Compact load handling: High load capacity in a small envelope helps machine builders keep axis designs slim.

Cons

• Higher upfront cost: Precision grinding, preloading, and quality steel add up — especially in larger diameters.
• No self-locking: Vertical axes need a counterweight or brake to prevent the load from falling when power is lost.
• Requires proper lubrication: The recirculating balls depend on clean, consistent lubrication to reach their rated life.
• Sensitive to contamination: Dirt or chips in the raceway accelerate wear, so protective wipers and covers matter.

Lead Screw Pros and Cons

Pros

• Low cost: A lead screw assembly can cost a fraction of an equivalent ball screw — attractive for prototypes, hobby machines, and simple mechanisms.
• Self-locking capability: Trapezoidal threads naturally resist back-driving, which is a genuine safety advantage on vertical or inclined axes.
• Quiet operation: Sliding contact tends to run quieter than recirculating balls at moderate speeds.
• Simple to replace: Nuts are inexpensive consumables; swapping one restores the mechanism quickly.

Cons

• Lower efficiency: More of the motor’s torque is lost to friction, which also generates heat at higher speeds.
• Wear and backlash: Sliding contact wears the threads over time, and clearance grows — accuracy drifts unless the nut is adjusted or replaced.
• Speed-limited: High RPM leads to thermal buildup and faster wear, capping practical traverse rates.
• Stick-slip behavior: At very low speeds, sliding friction can cause jerky motion, which hurts fine positioning.

How to Choose: A Practical Decision Guide

The right choice depends on what the axis actually has to do. Work through these questions in order:

1. What accuracy does the job require?

If the axis must hold tolerances of a few hundredths of a millimeter or better, or perform contouring with frequent direction reversals, choose a ball screw with a preloaded nut. Lead screws suit applications where tenth-of-a-millimeter positioning is acceptable.

2. How fast must the axis move?

Continuous high traverse speeds favor ball screws. If the application runs at low speed and low duty cycle, a lead screw can do the job at a fraction of the cost.

3. Is the axis vertical?

A self-locking lead screw holds position when power drops — a real safety benefit. With a ball screw on a vertical axis, you must engineer a brake or counterweight.

4. What is the duty cycle?

Production machinery running 8–24 hours a day needs ball screw reliability. Intermittent, light-duty mechanisms can save money with lead screws.

5. What is the load and how compact must the drive be?

Ball screws deliver more load capacity per unit of envelope, which matters in dense machine designs.

6. What about the environment?

In dusty or chip-heavy environments, both designs need protection — but a ball screw’s recirculating balls are more sensitive to contamination than a rugged bronze nut. Choose sealed or wiper-equipped options for dirty conditions.

Quick rule of thumb: If the axis is a CNC feed axis, a positioning stage, or a robotic drive — ball screw. If it is a manual adjustment, a simple lift, or a cost-sensitive light-duty mechanism — lead screw.

Common Applications

Ball screws are found in:

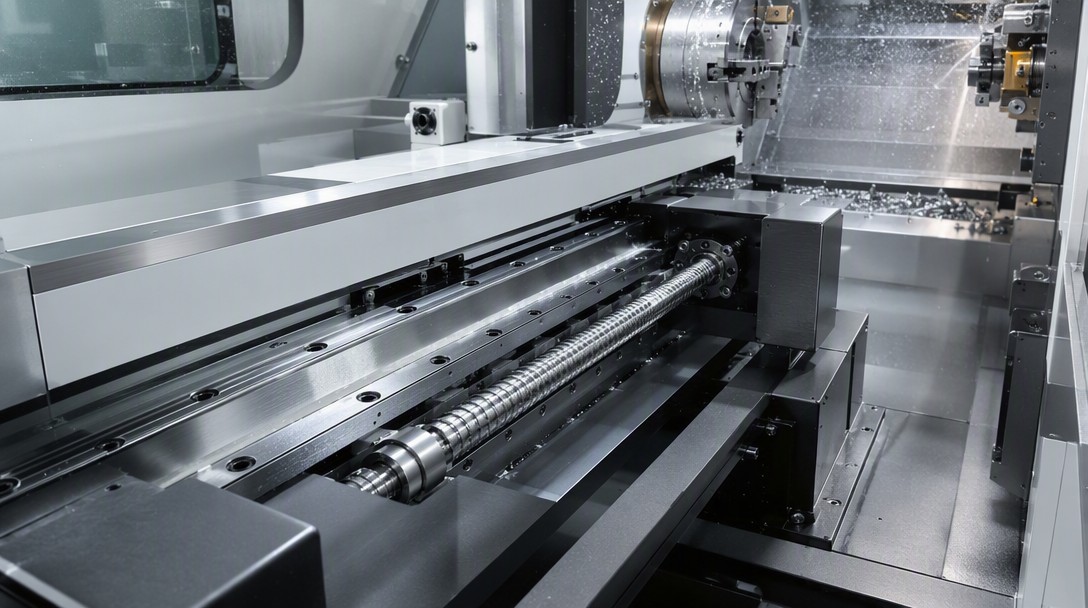

• CNC lathe and milling machine feed axes
• Turning centers and mill-turn machines
• Automation and robotics positioning systems
• Precision measuring and inspection stages
• High-speed pick-and-place equipment

Lead screws are found in:

• Manual machine slides and table adjustments
• Simple linear actuators and lifts
• Prototype and hobby CNC builds
• Cost-sensitive automation with low duty cycles
• Applications where self-locking is a safety feature

Maintenance Tips for Both Designs

Regardless of which screw you choose, these practices extend service life:

• Lubricate on a schedule: Ball screws need periodic re-lubrication matched to duty cycle; lead screws benefit from greasing the nut regularly.
• Protect the threads: Use accordion covers, bellows, or wipers to keep chips and coolant off the screw surface.
• Check for backlash: Measure reverse-direction lost motion periodically. For ball screws, re-preload or replace the nut when play appears. For lead screws, adjust or replace the nut.
• Inspect for wear: Grooves, pitting, or discoloration on the thread flanks signal that replacement is due.
• Align the drive: Misalignment between screw, nut, and motor coupling is the most common cause of premature failure in both designs.

Conclusion

Ball screws and lead screws both convert rotary motion into linear motion, but they are not interchangeable. Ball screws deliver the precision, efficiency, and speed that production CNC machining demands — and they pay for themselves quickly when the alternative is rejected parts or machine downtime. Lead screws remain a perfectly good choice for low-speed, cost-sensitive, or self-locking applications.
