How Automated CNC Production Lines Help Bicycle Manufacturers Improve Quality, Consistency, and Productivity
How Automated CNC Production Lines Help Bicycle Manufacturers Improve Quality, Consistency, and Productivity
The global bicycle and e-bike manufacturing sectors are experiencing an unprecedented push toward technical refinement. Today’s consumers and regulatory frameworks demand structural components—such as bicycle handlebars, front forks, seat tubes, and suspension systems—that meet strict mechanical and safety tolerances. However, scaling up to meet this demand while maintaining high quality presents significant production hurdles.
For high-volume manufacturers, relying on traditional, fragmented forming and sizing processes is becoming less viable. Achieving a smooth transition from labor-intensive setups to stable, high-throughput manufacturing requires a strategic shift. Implementing specialized bicycle parts automation equipment, such as dedicated tube-forming systems, is no longer just an optional upgrade; it is a critical strategy for staying competitive in a demanding global market.

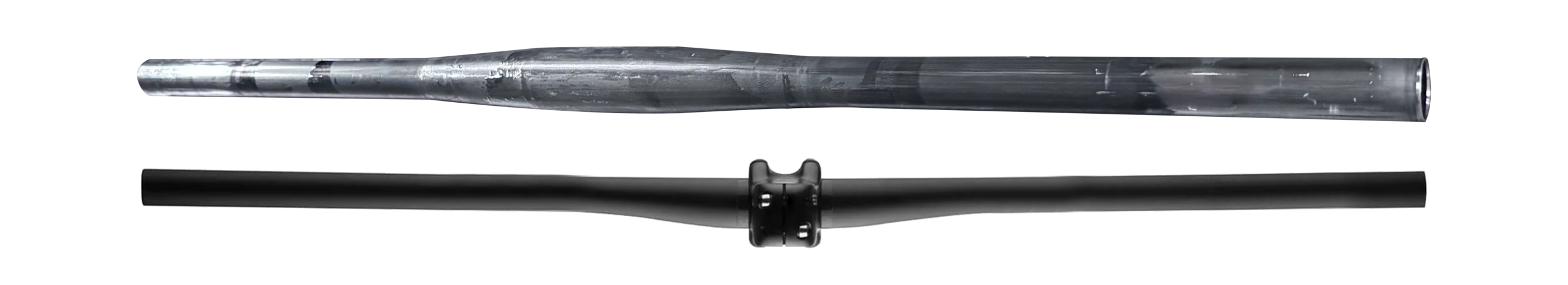

Handlebar
The Challenge: Why Traditional Bicycle Parts Processing Becomes a Bottleneck
Many bicycle component manufacturers still rely on traditional workshop layouts where operators manually load, position, and press workpieces across isolated hydraulic swaging or rotary forging stations. While this approach provides some flexibility for small batches, it introduces several challenges during high-volume production runs:
High Dependency on Manual Labor: High-pressure tube forming requires constant manual handling and exact piece placement. Recruiting, training, and retaining operators for these repetitive and high-risk environments has become increasingly difficult.
Variability in Quality and Consistency: Minor variations in how different operators position or depth-gauge components across shifts can cause inconsistent taper depths. In structural parts like handlebars, these deviations disrupt downstream bending, milling, or stem-clamping steps.
Frequent Component Damage during Transfer: Manually moving raw or semi-finished aluminum alloy tubes between distant processing stations increases the risk of surface scratches, ovality distortion, or missed processing steps.
Suboptimal Equipment Utilization: When individual machines operate in isolation, significant time is lost during manual alignment and manual clamping, leaving high-speed downstream processing lines waiting.
Inconsistent Traceability: Manual quality measurement at the end of a line cannot provide real-time dimensional verification, making it harder to detect tool wear or hydraulic pressure drift early in the process.
A Representative Automation Project for Bicycle Component Production
To see how these challenges can be addressed, let's look at a representative project designed by JIA KUN Machinery for a high-volume bicycle parts manufacturer looking to automate their tube tapering and forming workflow.
Initial Client Process and Requirements
The client originally used manual standalone hydraulic swaging presses to taper both ends of raw aluminum tubes before the hydroforming and bending steps. Operators had to hold each tube by hand, feed it into the press mechanism, reverse it, and repeat the process for the opposite end.
Faced with a surge in international orders and strict delivery deadlines, the manufacturer required an integrated bicycle manufacturing automation solution capable of running reliably across multiple shifts with minimal operator intervention. They needed an engineering partner capable of transforming this fragmented, hazardous process into a continuous, automated workflow.
JIA KUN’s Design Philosophy: Stable Mass Production First
When evaluating a new project, JIA KUN Machinery focuses on a core engineering philosophy: prioritizing stable mass production over raw single-machine speed. Optimizing a single forming cycle by a couple of seconds matters little if the overall line frequently stops due to complex tool maintenance, poor lubrication management, or frequent component jams. True productivity comes from system-wide reliability and predictable cycle times.
To achieve this stability, JIA KUN Machinery focuses on a comprehensive design approach:
End-to-End Workflow Integration: We analyze the entire manufacturing sequence—from raw material loading, positioning, and clamping to machining transitions, post-process inspection, and final unloading.
Cycle-Time Balancing: We meticulously match the cycle times of each automated station to eliminate bottlenecks and prevent components from piling up between operations.
Rigid, Repeatable Workholding: We design custom hydraulic or pneumatic fixtures that ensure consistent clamping pressure without crushing thin-walled aluminum tubes.
Future-Proof Flexibility: By utilizing a modular architecture, we ensure the automated line can adapt to future product changes (such as different taper angles or bar lengths) with minimal adjustments to tooling and fixtures.
From Manual Handling to an Automated CNC Production Flow
For this representative project, JIA KUN Machinery deployed its specialized Automatic Handlebar Tapering Machine, connecting several specialized processing components into a single, synchronized production flow.
Phase 1: Automatic Feed and Rigid Linear Alignment
Raw tube stock is placed onto the integrated heavy-duty feed table. The system’s automatic loading and unloading system or synchronized pneumatic transfer bars take each individual tube, center it, and lock it into the alignment matrix. This ensures the tube axis aligns perfectly with the tapering dies.
Phase 2: Automated Tapering and Precision Forming
Once clamped, the machine executes the automated tapering and forming processes. Through a series of highly synchronized mechanical progressions and controlled compression passes, the unit creates precise and consistent conical shaping of the handlebar ends. This configuration yields a flawless outer surface profile and accurate inner diameter dimensional stability.
Phase 3: High-Efficiency Continuous Output
By integrating heavy-duty structural frames and responsive hydraulic/mechanical linkages, the processing cycle time is optimized to approximately 20–25 seconds per piece This setup is perfectly suited for highly efficient continuous production, effectively reducing manual labor dependency to a bare fraction of traditional workshop requirements.
How Automation Improves Bicycle Part Quality and Consistency
Transitioning to a dedicated bicycle component machining automation line offers significant benefits for part quality and process control:
Precise Conical Dimensions
Manual feeding always risks variation in insertion depth or speed, leading to uneven tapered transitions. An automated tapering line uses rigid mechanical end-stops and electronic sensors to ensure every single workpiece is deformed identically down to the millimeter.
Structural Integrity Preservation
In a connected production flow, the material compression phase is regulated precisely. This structural consistency prevents local wrinkling or micro-cracking—especially in high-strength aluminum alloys—ensuring the thin-walled bicycle handlebar retains optimal structural strength.
Real-Time System Integrity Tracking
Modern CNC automation for bicycle components tracks pressure variations and stroke travel distances during each tapering cycle. If tool wear or material hardness deviates from the set parameter threshold, the system flags the issue instantly, preventing downstream assembly errors.
Key Results of the Project
By replacing scattered, manually operated machines with an integrated automated line, the manufacturer achieved several key operational goals:
Optimized Production Planning: Moving to a connected production flow provided highly predictable output rates, allowing the client to plan their schedules and meet delivery timelines with confidence.
Reduced Manual Handling Steps: Eliminating manual transfers between separate machining stations significantly lowered the risk of material scratches and component damage.
Consistent Component Quality: Automating the clamping and tapering sequences minimized shift-to-shift variations, helping the customer maintain tight aesthetic and dimensional tolerances over long production runs.
Improved Workforce Utilization: The automated line reduced the need for highly repetitive manual loading and pressing tasks, allowing the manufacturer to reallocate their technical staff to safer, more valuable roles.
Scalable Production Foundation: The modular design of the equipment gives the manufacturer a reliable foundation for future capacity expansion or product modifications.
Why Customized Automation Matters for Bicycle Manufacturers
No two bicycle component factories share the exact same floor layout, material specifications, or product mixes. A standard, off-the-shelf tube swager rarely meets the specific throughput and geometry requirements of complex parts like progressive-taper handlebars, bicycle front fork machining machines, or specialized frame components.
As an experienced custom automation equipment manufacturer, JIA KUN Machinery goes beyond simply supplying machinery. We partner with our clients to design tailored manufacturing solutions.
Our engineering team analyzes your specific part geometries, alloy characteristics, floor space limitations, and production targets to develop optimized manufacturing systems. Whether modifying an automated tapering cell or implementing a high-speed bicycle tube processing machine, our goal is to deliver an automated system that integrates smoothly into your facility and provides a reliable return on investment.
Build Your Next Bicycle Parts Automation Line with JIA KUN
Are you ready to optimize your production floor, address labor constraints, and improve component consistency? JIA KUN Machinery is here to help you develop a tailored bicycle parts processing automation strategy.
To help our engineering team assess your project and design the most effective solution for your facility, please provide us with the following details:
Part Drawings & Technical Specifications: 2D or 3D CAD files indicating critical tolerances and dimensions.
Material Types: Specific aluminum alloys, steel grades, or composite specifications.
Target Production Capacity: Your required daily, weekly, or annual output targets.
Current Manufacturing Workflow: A brief overview of your current machining steps and bottlenecks.
Desired Cycle Time: Your target processing time per finished component.
Contact JIA KUN Machinery today to share your project specifications and schedule a technical consultation with our engineering team. Let's work together to build a more efficient, automated production line.
FAQ (Frequently Asked Questions)
Q1: What specific bicycle components can be processed using JIA KUN’s automation equipment?
A: Our customized machinery is designed to process a wide variety of precision metal parts. This includes bicycle handlebars, front forks (crowns, steer tubes, and stanchions), seat tubes, suspension components, central movement shells, frame dropouts, and various custom-profiled aluminum alloy tubes.
Q2: What is the average cycle time of the Automatic Handlebar Tapering Machine?
A: Depending on the specific wall thickness, material grade, and taper design, the cycle time is approximately 20–25 seconds per piece, which is ideal for continuous high-capacity operations.
Q3: Can your automated lines handle quick changeovers for different bicycle part models?
A: Yes. JIA KUN Machinery incorporates modular designs, quick-change die pockets, and programmable controllers into our lines. This allows operators to switch between different tapering lengths or outer diameters relatively quickly by swapping tool dies and adjusting parameters via the HMI interface.
Q4: How do your systems protect thin-walled aluminum bicycle tubes from deformation during high-pressure clamping?
A: We design custom-contoured jaw fixtures that envelope the tube body, distributing clamping forces evenly across the material surface. This ensures the component is held securely during heavy mechanical compression without exceeding the material's yield strength or causing structural deformation.
Q5: Is it possible to integrate automated detection systems into existing production lines?
A: Absolutely. We can integrate advanced sensor positioning networks, laser sensors, or pneumatic touch probes directly into our automated transfer lines. These tools verify part insertion alignment before forming and measure critical dimensions immediately afterward, helping to prevent out-of-tolerance parts from moving down the line.
