How Automated CNC Production Lines Help Bicycle Manufacturers Improve Quality, Consistency, and Productivity
How Automated CNC Production Lines Help Bicycle Manufacturers Improve Quality, Consistency, and Productivity
The global bicycle and e-bike manufacturing industry is undergoing a significant transformation. Driven by growing consumer demand for lighter materials, stricter structural safety tolerances, and compressed delivery schedules, component suppliers face unprecedented production challenges. Traditional manufacturing methods that rely heavily on manual machine tending and decentralized setups are increasingly failing to keep pace with these market pressures.
To maintain a competitive edge, tier-one suppliers are transitioning toward integrated bicycle parts automation equipment. Shifting from isolated machining stations to a highly synchronized, automated CNC production line for bicycle parts allows factories to stabilize high-volume output while maintaining the structural integrity required for critical components like stems, front forks, and suspension elements.

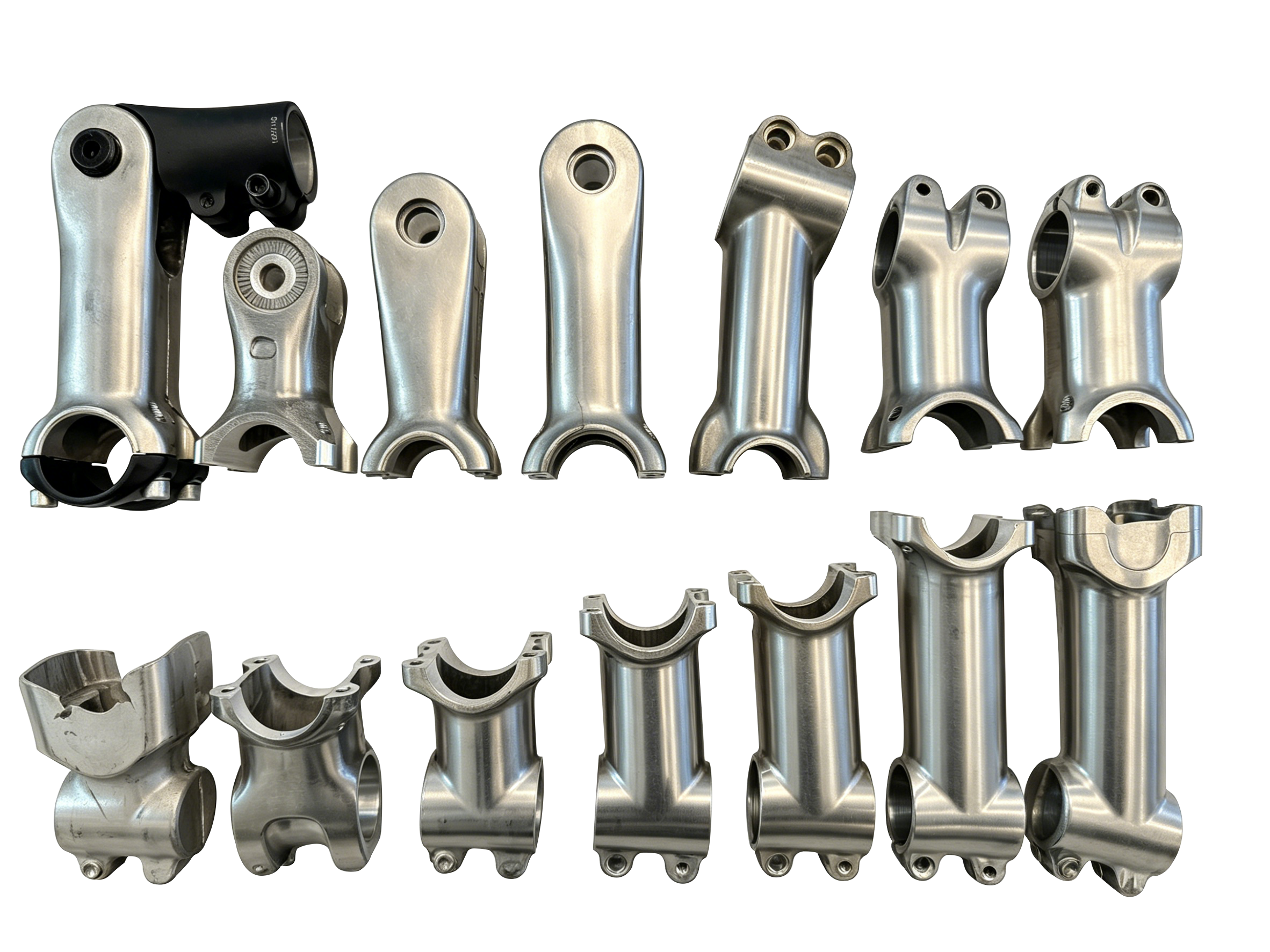

Stem
The Challenge: Why Traditional Bicycle Parts Processing Becomes a Bottleneck
Many mid-to-large-scale bicycle component manufacturers still rely on conventional, labor-intensive production workflows. In a typical traditional factory layout, workpiece processing involves multiple separate steps: raw aluminum or steel tubes are manually cut, transferred to standalone CNC milling machines, moved again for drilling or tapping, and finally taken to a separate deburring and manual inspection station.
This fragmented manufacturing approach introduces several operational vulnerabilities:
High Dependency on Manual Labor: Recruiting, training, and retaining skilled machine operators has become a severe challenge worldwide. Rising labor costs and high turnover directly impact factory floor stability.
Dimensional Inconsistency Across Shifts: When parts are loaded manually, slight variations in how different operators position the workpiece into fixtures lead to subtle deviations. Over multiple shifts, this human variable results in fluctuating tolerances.
Frequent Inter-Process Material Handling: Moving components between isolated machines manually increases the risk of surface scratches, cosmetic dents, part mix-ups, or even missed machining steps.
Equipment Downtime and Bottlenecks: When one standalone machine waits for an operator to complete a cycle on another, the entire production flow stalls, limiting overall throughput.
Traceability and Quality Control Gaps: Manual inspection is prone to fatigue. Without inline verification integrated into the production line, identifying the root cause of a batch defect becomes difficult after the parts have moved down the line.
A Representative Automation Project for Bicycle Component Production
To understand how these bottlenecks can be effectively resolved, we can look at a representative automation project engineered by JIA KUN Machinery for a high-volume bicycle component manufacturer.
The client, a major regional supplier specializing in aluminum alloy components, was facing immense pressure to scale up its production of critical steering and frame components, such as the bicycle stem and front fork assemblies. Their existing setup relied on an array of standard CNC machines. Operators were tasked with manually loading raw forgings, flipping them to machine secondary faces, and manually moving them to dedicated drilling units.
As their order book grew, this manual workflow created a severe bottleneck. The client required a complete production upgrade. Their primary objectives were to minimize manual handling, eliminate the risk of human error during multi-axis machining, and establish a continuous, predictable cycle time capable of supporting stable mass production.
JIA KUN’s Design Philosophy: Stable Mass Production First
When evaluating a complex upgrade for bicycle component machining automation, JIA KUN Machinery operates on a core design philosophy: prioritize long-term process stability and consistent mass production over raw, isolated single-machine speed. Speed alone does not guarantee profitability if the line suffers from frequent downtime, complex changeover procedures, or high scrap rates. A truly effective bicycle manufacturing automation solution must look at the entire manufacturing lifecycle as a single, harmonious system.
JIA KUN’s engineering team approaches each project by comprehensively planning the flow of the workpiece from raw material arrival to final discharged part. Our system architecture focuses on:
Optimizing cycle-time balance across every machining station to eliminate idle time.
Designing robust, high-precision fixtures that ensure repeatable positioning accuracy.
Integrating durable mechanical interfaces that withstand continuous, multi-shift operation in demanding industrial environments.
Utilizing modular engineering, allowing manufacturers to adapt the automation line to future product design iterations with minimal structural modification.
From Manual Handling to an Automated CNC Production Flow
For this representative project, JIA KUN Machinery designed and deployed an integrated, continuous automated CNC production line for bicycle parts. The system replaced multiple individual operators and scattered machinery with a unified, smart production cell.
Step 1: Automatic Loading and Material Orientation
The process begins at an automated bulk loading bin. Raw aluminum stem forgings or tube blanks are organized via an automatic loading and unloading system. A gantry loading system or integrated vision-guided robot picks up the raw part, verifies its orientation, and precisely places it into the initial staging position.
Step 2: Multi-Station Synchronized Machining
The workpiece is then transferred into a high-efficiency multi-station rotary table machine engineered by JIA KUN. In a single clamping cycle, the rotary table Indexes the part through multiple specialized machining units. While station one is loading, station two performs heavy face milling, station three executes multi-angle drilling, and station four completes high-speed tapping and grooving. Because the part remains securely clamped in the same fixture throughout these steps, geometric errors between different features are virtually eliminated.
Step 3: Dual-End Processing and Turn-Over
For components requiring symmetric machining on both sides—such as a bicycle front fork machining machine application or precise tube end-forming—the part is handed off by an integrated robot to a dual-end simultaneous cutting CNC lathe. Machining both ends of the component simultaneously eliminates the need for an operator to manually flip the part, ensuring perfect axial alignment and cutting cycle times exactly in half.
Step 4: Inline Quality Inspection
Before leaving the automated cell, the component passes through an inline inspection station. Depending on the part specifications, this includes automated touch probes or high-resolution machine vision systems that verify critical dimensions and thread presence.
Step 5: Automated Unloading
Conforming finished parts are gently placed onto a designated output conveyor by the unloading system, ready for subsequent surface treatment or anodizing, completely free from manual handling damage.
How Automation Improves Bicycle Part Quality and Consistency
Transitioning to a dedicated bicycle parts processing automation system directly solves the quality variables inherent in manual production:
Elimination of Clamping Variance: Human operators apply varying forces when tightening fixtures or clearing chips. JIA KUN’s automated line utilizes hydraulic or pneumatic precision fixtures paired with automatic air-blow systems to ensure the raw part sits perfectly against the locating datums every single time.
Minimized Geometric Deviations: When a component is handled by multiple people across separate machines, cumulative tolerance stack-up occurs. Machining multiple features on a multi-station rotary table machine under a single reference setup guarantees that concentricity, perpendicularity, and parallelism remain exceptionally tight.
Protection of Critical Surfaces: High-end bicycle parts require flawless surface finishes. By replacing manual metal bins and rough handling with precision robotic grippers and specialized nylon-coated automation nests, the risk of surface impact dents and cosmetic scratches is significantly mitigated.
Key Results of the Project
By partnering with a custom automation equipment manufacturer like JIA KUN Machinery to implement a connected production flow, the client achieved substantial operational improvements:
Reduced Manual Handling Steps Significantly: The reliance on operators to move, flip, and manually re-clamp parts between different operations was completely removed from the primary machining cycle.
Improved Process Consistency Across Shifts: By standardizing the mechanical cycle, the dimensional output of the parts became identical during day and night shifts alike.
Reduced Risk of Missed Operations and Part Damage: Automated tracking and inline verification ensured that no part could accidentally bypass a critical drilling or tapping sub-process.
Transitioned from Scattered Processing to a Connected Flow: The factory floor layout was streamlined, drastically reducing work-in-progress (WIP) inventory accumulating between machine centers.
Enhanced Production Planning and Delivery Reliability: With a fixed, predictable cycle time (approximately 25–28 seconds per piece depending on the specific part design), management could forecast daily output with near-perfect accuracy.
Reduced Dependence on Highly Skilled Manual Operators: The plant shifted its valuable human resources from repetitive machine tending to high-level system oversight and preventative maintenance.
Created a Foundation for Future Capacity Expansion: The modular architecture allows the client to adapt the line for new bicycle component variants by simply changing out the fixture nests and updating the CNC programming.
Why Customized Automation Matters for Bicycle Manufacturers
There is no one-size-fits-all machine in modern bicycle manufacturing. A stem for a mountain bike requires entirely different clamping and tooling paths than an aerodynamic e-bike front fork or a lightweight hydroformed bicycle tube processing machine application.
Standard, off-the-shelf vertical machining centers often require extensive manual setup times and complex, multi-operation configurations that slow down production lines. Working with a dedicated specialist like JIA KUN Machinery ensures that your automation line is tailor-made to match your exact part geometry, material specifications, and volume demands. From specialized tool-wear monitoring systems to custom-engineered multi-spindle heads, custom automation aligns perfectly with your factory's specific workflow constraints and growth goals.
Build Your Next Bicycle Parts Automation Line with JIA KUN
Are you ready to eliminate production bottlenecks, reduce your reliance on manual labor, and elevate the quality of your bicycle components to international standards?
JIA KUN Machinery designs, manufactures, and integrates world-class CNC automation for bicycle components. Our engineering team is ready to analyze your existing production layout and develop a high-performance, turnkey automated solution tailored precisely to your factory's needs.
📋 Request a Custom Automation Assessment
To help our engineering team design the optimal automation workflow for your facility, please provide us with:
Technical Part Drawings & 3D Models (indicating critical tolerances and material grades, e.g., Aluminum 6061/7075).
Your Current Manufacturing Process Flow and existing machinery setup.
Target Cycle Time (seconds per piece) and your monthly/annual output goals.
Specific Automation Preferences (e.g., robotic arm integration, gantry systems, or specific CNC control platforms).
✉️ Contact JIA KUN Machinery today to schedule a technical consultation with our automation specialists!
FAQ (Frequently Asked Questions)
1. What specific bicycle parts can JIA KUN’s automation equipment process?
Our customized solutions are engineered to process a wide variety of precision bicycle and e-bike components. This includes bicycle stems, front fork crowns, steer tubes, suspension shock linkages, disc brake brackets, frame dropouts, and various hydroformed aluminum alloy structural tubes.
2. How does a multi-station rotary table machine compare to a standard CNC machining center?
A standard CNC machining center typically processes one or two parts sequentially, requiring a tool change for each sequential operation. A multi-station rotary table machine performs multiple distinct operations (such as milling, drilling, and tapping) simultaneously on different parts at different stations. This drastically reduces overall cycle times and ensures high-volume output within a compact footprint.
3. Can JIA KUN’s automation lines accommodate different part models or design changes?
Yes. JIA KUN utilizes a modular design philosophy. The core machine structures, robotic transport networks, and control systems remain constant, while the fixtures, grippers, and CNC tooling paths can be quickly changed or reprogrammed to accommodate new component geometries or product updates.
4. What happens if a raw part is loaded incorrectly into the system?
Our automated lines are equipped with intelligent fail-safes. The automatic loading and unloading system incorporates mechanical sensors, pneumatic seat-checks, or optional vision inspection systems. If a raw part is misaligned or out of tolerance before clamping, the system pauses or flags the piece, preventing tool breakage and ensuring machine safety.
5. How long does it typically take to design and deploy a custom bicycle parts automation line?
The project timeline depends entirely on the complexity of the component, the number of required machining operations, and the level of robot integration. After analyzing your part drawings and production requirements, JIA KUN will provide a detailed project schedule covering design, engineering, fixture customization, software programming, factory acceptance testing (FAT), and final on-site installation.
