How Automated CNC Production Lines Help Bicycle Manufacturers Improve Quality, Consistency, and Productivity
How Automated CNC Production Lines Help Bicycle Manufacturers Improve Quality, Consistency, and Productivity
The global bicycle and e-bike manufacturing sectors are experiencing an unprecedented push toward technical refinement. Today’s consumers and regulatory frameworks demand critical structural components—such as bicycle fork crowns, front forks, seat tubes, and suspension systems—that meet strict mechanical strength, geometric alignment, and safety tolerances. However, scaling up to meet this demand while maintaining high quality presents significant production hurdles.
For high-volume manufacturers, relying on traditional, fragmented machining configurations is becoming less viable. Achieving a smooth transition from labor-intensive setups to stable, high-throughput manufacturing requires a strategic shift. Implementing specialized bicycle parts automation equipment, such as state-of-the-art multi-station indexing cells, is no longer just an optional upgrade; it is a critical strategy for staying competitive in a demanding global market.

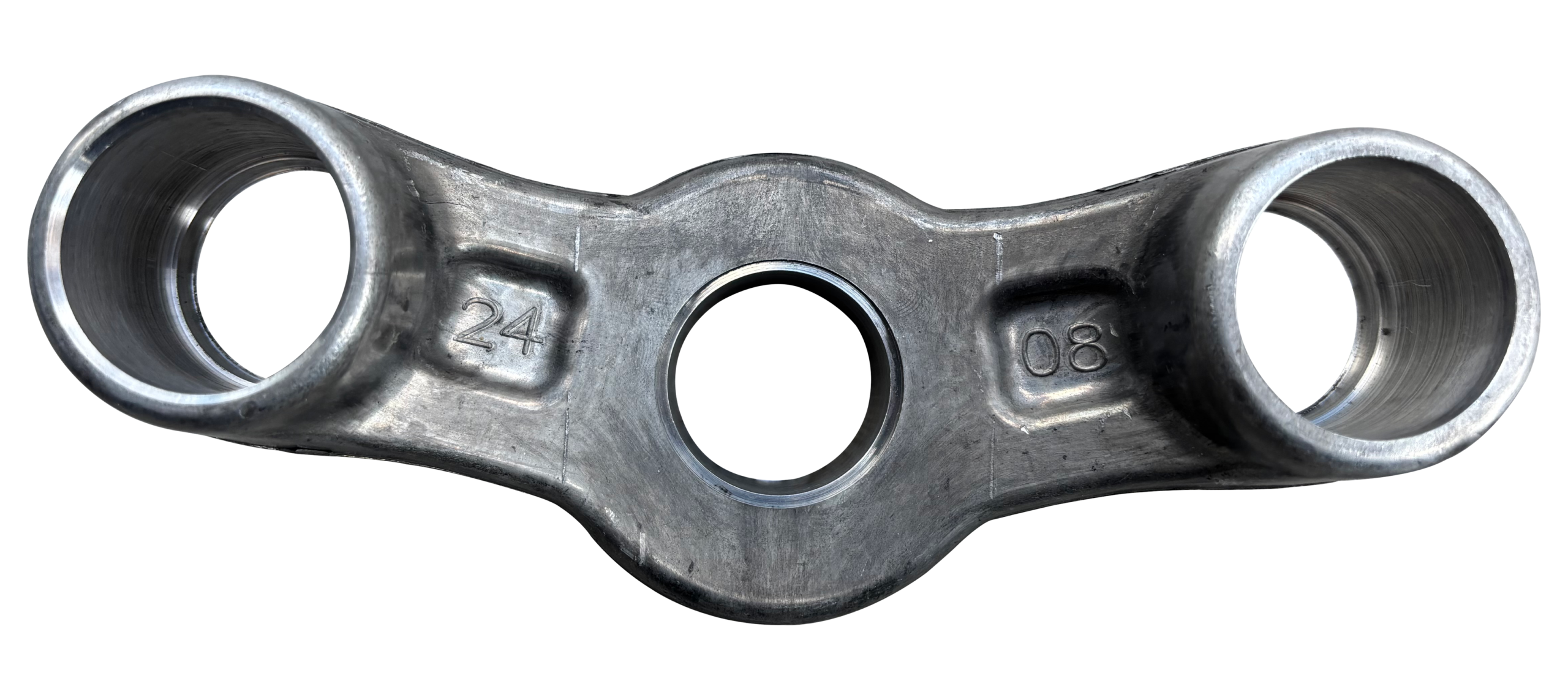

Fork Crown Cap
The Challenge: Why Traditional Bicycle Parts Processing Becomes a Bottleneck
Many bicycle component manufacturers still rely on traditional workshop layouts where operators manually move heavy, cast or forged pieces like bicycle fork crowns across multiple individual standalone CNC milling and drilling machines. While this approach provides some flexibility for small batches, it introduces several challenges during high-volume production runs:
High Dependency on Manual Labor: Moving awkward, un-machined forgings through separate clamping setups requires constant manual intervention. Recruiting and retaining operators for these highly repetitive, labor-intensive environments has become increasingly difficult.
Variability in Quality and Cumulative Tolerances: When a single fork crown must be un-clamped and re-clamped across three or four separate machines for boring, facing, and reaming, cumulative positioning errors inevitably occur. This leads to inconsistent hole alignments, resulting in assembly friction or structurally compromised front forks.
Frequent Component Damage and Logistical Chaos: Manually moving bins of semi-finished parts between distant machinery stations increases the risk of part-on-part impact dents, material mix-ups, or missed secondary chamfering steps.
Suboptimal Equipment Utilization and Bottlenecks: When individual CNC machining centers run in isolation, huge amounts of potential output are lost during manual part orientation, part alignment, and clamping, leaving downstream assembly lines starving for stock.
Lack of Real-Time Process Data: Fragmented manual production lines cannot support automated in-line inspection or synchronized data tracking, making it difficult to detect tool breakage or hydraulic clamping variations instantly.
A Representative Automation Project for Bicycle Component Production
To see how these challenges can be addressed, let's look at a representative project engineered by JIA KUN Machinery featuring our flagship, high-technology Fully Automated All-Servo 10-Station Rotary Transfer Machine designed specifically for high-volume bicycle fork crown manufacturing.
The client originally utilized four separate vertical machining centers to process a rugged forged fork crown. The part required multi-axis drilling for the steer tube bore and stanchion sockets, followed by top-facing and internal threading. Four separate operators were needed to load, monitor, and unload the parts sequentially.
Faced with a surge in international premium e-bike orders and strict delivery deadlines, the manufacturer required a highly integrated bicycle manufacturing automation solution capable of executing all machining steps within a single compact footprint. They needed an engineering partner capable of transforming this slow, multi-stage task into a high-technology, continuous, unmanned workflow.
JIA KUN’s Design Philosophy: Stable Mass Production First
When evaluating a new project, JIA KUN Machinery focuses on a core engineering philosophy: prioritizing stable mass production over raw single-machine speed. Optimizing a single machining cycle by a couple of seconds matters little if the overall line frequently stops due to bird-nest chips, complex fixture access, or delicate raw forging variations. True productivity comes from system-wide reliability and predictable cycle times.
To achieve this stability, JIA KUN Machinery focuses on a comprehensive design approach for our high-end rotary transfer systems:
End-to-End Workflow Integration: We analyze the entire manufacturing sequence—from raw material loading, positioning, and clamping to machining transitions, post-process inspection, and final unloading.
Simultaneous Multi-Station Machining: By dividing the entire machining process into synchronized micro-steps across 10 distinct internal stations, multiple tool heads cut the same workpiece concurrently, optimizing cycle times.
Dual-Core Interior Stability: We combine high-speed, programmable all-servo tool head feeds with massive hydraulic clamping power in the interior nest to handle high cutting loads without a millimeter of geometric drift.
Future-Proof Flexibility: By utilizing a modular tool head architecture and quick-change fixture nests, we ensure the automated line can adapt to future product changes (such as different steering offsets or stanchion diameters) with minimal adjustments to tooling and fixtures.
From Manual Handling to an Automated CNC Production Flow
For this representative project, JIA KUN Machinery deployed its flagship Fully Automated All-Servo 10-Station Rotary Transfer Machine, connecting advanced robotics and internal multi-station indexing into a single, synchronized production flow.
Phase 1: Robotic Material Handling and Stackable Loading
Raw fork crown forgings are loaded into structured, stackable magazines. Seamlessly synergizing with the main cell, an integrated OTC robot equipped with a custom pneumatic dual-gripper picks a raw part, presents it to a quick orientation gauge, and loads it into the indexing fixture table.
Phase 2: High-Precision Multi-Station Machining
Once loaded, the heavy-duty indexing table rotates the component through the machine's multi-station array. The system features a robust Servo Interior for ultra-precise tool head advancement and a high-rigidity Hydraulic Interior for absolute part immobilization under high torque.
As the table indexes, specialized machining units simultaneously perform rough boring of the steer tube hole, finish boring of the fork legs, top-and-bottom facing, precision chamfering, and automated tapping. What used to require four standalone CNC machines is completed inside a single enclosed, automated workspace.
Phase 3: Rapid Cycle Unmanned Output
Upon completing the final machining station, the OTC robot extracts the finished fork crown while simultaneously loading a fresh raw forging into the vacant nest. This automated, unmanned operation optimizes the processing cycle time to approximately 20–25 seconds per piece. This configuration significantly boosts delivery efficiency for large-scale mass production while completely eliminating manual handling errors.
How Automation Improves Bicycle Part Quality and Consistency
Transitioning to a dedicated bicycle component machining automation line offers significant benefits for part quality and process control:
Eradication of Cumulative Clamping Errors
Because the fork crown stays locked in the exact same heavy-duty hydraulic fixture nest from the first rough cut to the final thread tap, cumulative clamping errors between separate machine centers are completely eliminated. This ensures the centerlines of the steering tube and fork stanchions remain perfectly parallel.
Uniform Structural Loading Profiles
Manual fixture loading can suffer from variable torque or trapped metal chips beneath the part datum plane. JIA KUN’s high-pressure hydraulic interior utilizes automated blow-off nozzles and constant pressure switches to ensure identical, rigid clamping profiles for every single piece.
Smart Tool Lifecycle Management
Our high-end CNC automation for bicycle components tracks tool spindle load curves across all active servo stations simultaneously. If a drill bit or tap shows signs of micro-chipping or excessive wear, the machine flags the error instantly on the control console, protecting raw inventory from structural defects.
Key Results of the Project
By replacing scattered, manually operated machines with an integrated automated line, the manufacturer achieved several key operational goals:
Optimized Production Planning: Moving to a connected production flow provided highly predictable output rates, allowing the client to plan their schedules and meet delivery timelines with confidence.
Reduced Manual Handling Steps: Eliminating manual transfers between separate machining stations significantly lowered the risk of material scratches and component damage.
Consistent Component Quality: Automating the clamping and machining sequences minimized shift-to-shift variations, helping the customer maintain tight geometric tolerances over long production runs.
Improved Workforce Utilization: The automated line reduced the need for highly repetitive manual loading and inspection tasks, allowing the manufacturer to reallocate their technical staff to safer, more valuable roles.
Scalable Production Foundation: The modular design of the equipment gives the manufacturer a reliable foundation for future capacity expansion or product modifications.
Why Customized Automation Matters for Bicycle Manufacturers
No two bicycle component factories share the exact same floor layout, material specifications, or product mixes. A standard, off-the-shelf single-axis CNC machine or basic milling drill cannot meet the extreme throughput, multi-angle access, and tight concentricity requirements of parts like complex e-bike fork crowns, bicycle front fork machining machines, or custom-profiled suspension brackets.
As an experienced custom automation equipment manufacturer, JIA KUN Machinery goes beyond simply supplying machinery. We partner with our clients to design tailored manufacturing solutions.
Our engineering team analyzes your specific part geometries, forging tolerances, floor space limitations, and production targets to develop optimized manufacturing systems. Whether modifying a flagship bicycle front fork machining machine or implementing a high-speed bicycle tube processing machine, our goal is to deliver an automated system that integrates smoothly into your facility and provides a reliable return on investment.
Build Your Next Bicycle Parts Automation Line with JIA KUN
Are you ready to optimize your production floor, address labor constraints, and improve component consistency? JIA KUN Machinery is here to help you develop a tailored bicycle parts processing automation strategy.
To help our engineering team assess your project and design the most effective solution for your facility, please provide us with the following details:
Part Drawings & Technical Specifications: 2D or 3D CAD files indicating critical tolerances and dimensions.
Material Types: Specific forged steel grades, aluminum alloy specifications, or cast iron parameters.
Target Production Capacity: Your required daily, weekly, or annual output targets.
Current Manufacturing Workflow: A brief overview of your current machining steps and bottlenecks.
Desired Cycle Time: Your target processing time per finished component.
Contact JIA KUN Machinery today to share your project specifications and schedule a technical consultation with our engineering team. Let's work together to build a more efficient, automated production line.
FAQ (Frequently Asked Questions)
Q1: What specific bicycle components can be processed using JIA KUN’s automation equipment?
A: Our customized machinery is designed to process a wide variety of precision metal parts. This includes bicycle fork crowns, front forks (crowns, steer tubes, and stanchions), seat tubes, suspension components, central movement shells, frame dropouts, and various custom-profiled aluminum alloy tubes.
Q2: What is the primary advantage of a 10-station rotary transfer machine over traditional CNC machining centers?
A: Our 10-station machine processes up to 9 parts simultaneously across different internal operations (such as drilling, milling, and tapping) while a robotic arm handles loading/unloading on the 10th station. This creates a continuous production flow that delivers a finished part every 20–25 seconds, significantly outperforming standalone single-station CNC setups.
Q3: How does the machine ensure consistent accuracy on cast or forged fork crowns with variations in raw dimensions?
A: The JIA KUN rotary transfer cell features custom-engineered hydraulic clamping nests that utilize mechanical self-centering datums. Combined with our rigid servo tool feeds, the machine compensates for minor external forging variances to keep internal bore tolerances perfectly aligned.
Q4: Can the machine be reprogrammed for different styles or sizes of fork crowns?
A: Yes. The machine features an all-servo tool drive system and a programmable CNC architecture. By swapping out the quick-change fixture inserts and choosing the corresponding part profile on the HMI interface, operators can change over between different fork models efficiently.
Q5: Is it possible to integrate vision or automated gauging systems into this rotary transfer machine?
A: Absolutely. We can integrate high-resolution vision positioning sensors, probe systems, or pneumatic touch gauges directly onto the loading station or intermediate indexing steps. This allows the system to verify part alignment before cutting begins and check critical dimensions before unloading, preventing out-of-tolerance components from moving down the line.
