How Automated CNC Production Lines Help Bicycle Manufacturers Improve Quality, Consistency, and Productivity
How Automated CNC Production Lines Help Bicycle Manufacturers Improve Quality, Consistency, and Productivity
The global bicycle and e-bike manufacturing sectors are experiencing an unprecedented push toward technical refinement. Today’s consumers and regulatory frameworks demand critical safety components—such as bicycle front forks, fork stanchions, steerer tubes, and suspension systems—that meet strict mechanical joint integrity, geometric alignment, and load-bearing tolerances. However, scaling up to meet this demand while maintaining high quality presents significant production hurdles.
For high-volume manufacturers, relying on traditional, individual press configurations is becoming less viable. Achieving a smooth transition from labor-intensive setups to stable, high-throughput manufacturing requires a strategic shift. Implementing specialized bicycle parts automation equipment, such as intelligent servo assembly centers, is no longer just an optional upgrade; it is a critical strategy for staying competitive in a demanding global market.

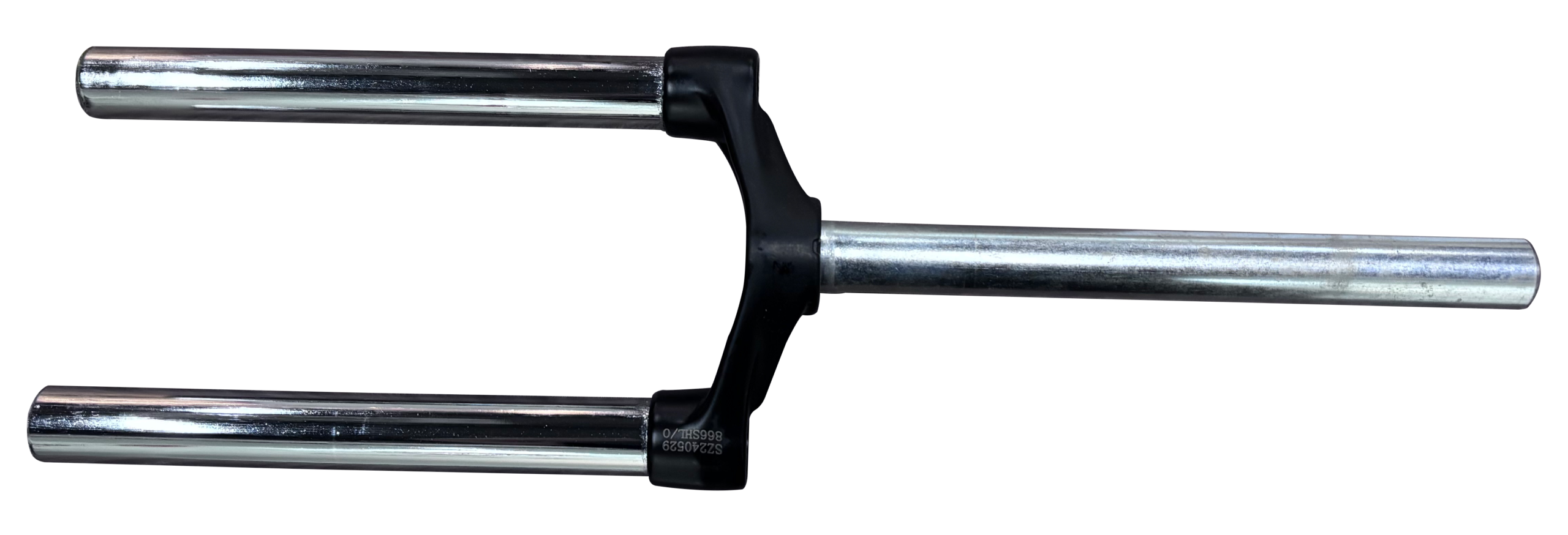

Fork Inner Leg Tube
The Challenge: Why Traditional Bicycle Parts Processing Becomes a Bottleneck
Many bicycle component manufacturers still rely on traditional workshop layouts where operators manually fit up and slide assemblies into separate standalone hydraulic or manual press machinery to link the steerer tube and dual stanchions into the cast fork crown. While this approach provides some flexibility for small batches, it introduces several challenges during high-volume production runs:
High Dependency on Highly Interrupted Labor: Manually aligning three separate tubular pieces concurrently inside a press fixture requires a high degree of operator coordination. Recruiting and training personnel for these repetitive assembly stations is increasingly difficult.
Variability in Quality and Misalignment: Individual mechanical or hydraulic presses often stroke without real-time feedback. If one stanchion meets a micro-obstruction, or if the insertion stroke is uneven across operators, the fork legs can press out of parallel, causing irreversible binding during downstream fork action.
Frequent Component Damage from Over-Pressing: Standard hydraulic presses apply blind force down to a hard stop. If components drift slightly out of tolerance, excessive pressure can buckle thin-walled aluminum stanchions or distort the fork crown mating bores, leading to immediate scrap.
Lack of Real-Time Data and Factory Audit Failures: Traditional assembly equipment cannot monitor the precise relationship between insertion force and depth. Without this capability, manufacturers cannot identify "soft press" joints caused by out-of-spec tolerances, resulting in failures during rigorous global brand quality audits.
Suboptimal Equipment Utilization: When alignment checks and piece-part fit-up operate as an isolated manual station, material movement slows down, creating a costly bottleneck that lags behind the output of high-speed automated machine lines.
A Representative Automation Project for Bicycle Component Production
To see how these challenges can be addressed, let's look at a representative project engineered by JIA KUN Machinery featuring our high-technology Smart Servo Press Center for Fork Stanchions & Steerer Tubes designed specifically for high-end premium bicycle front fork assembly.
Initial Client Process and Requirements
The client originally utilized two separate traditional hydraulic press stations to assemble a high-end mountain bike suspension fork. One operator pressed the center steerer tube into the crown, and a second machine pressed the dual fork inner leg tubes (stanchions) sequentially. This method caused high structural scrap rates due to uneven component alignment and a lack of data validation.
Faced with a surge in international premium e-bike orders and strict regulatory delivery deadlines, the manufacturer required a unified bicycle manufacturing automation solution capable of interlocking all three tubes into the crown simultaneously within a single workspace. They needed an engineering partner capable of transforming this slow, blind force operation into a data-driven, continuous, high-yield automated workflow.
JIA KUN’s Design Philosophy: Stable Mass Production First
When evaluating a new project, JIA KUN Machinery focuses on a core engineering philosophy: prioritizing stable mass production over raw single-machine speed. Optimizing a single mechanical press stroke by a couple of seconds matters little if the overall line frequently stops due to component jams, structural fractures, or delicate tooling setup delays. True productivity comes from system-wide reliability and predictable cycle times.
To achieve this stability, JIA KUN Machinery focuses on a comprehensive design approach for our high-technology servo press systems:
End-to-End Workflow Integration: We analyze the entire manufacturing sequence—from raw material loading, positioning, and clamping to machining transitions, post-process inspection, and final unloading.
Simultaneous Multi-Axis Assembly: By executing a breakthrough concept that presses the steerer tube and dual stanchions in a single station concurrently, we eliminate uneven stress distributions and cut cycle times.
Closed-Loop Smart Control Tuning: We combine highly precise servo electric actuators with fast-response load cells and linear displacement sensors, modifying down-force profiles millisecond by millisecond.
Integrated Factory Connectivity: By preparing data conduits that interlock with factory management networks, we transform a basic press workstation into an intelligent, auditable quality validation checkpoint.
From Manual Handling to an Automated CNC Production Flow
For this representative project, JIA KUN Machinery deployed its specialized Smart Servo Press Center for Fork Stanchions & Steerer Tubes, connecting advanced servo control and digital manufacturing infrastructure into a single, synchronized production flow.
Phase 1: High-Precision Component Alignment and Safety Guarding
The operator or robot positions the pre-aligned fork crown, steerer tube, and Fork Inner Leg Tube components inside the non-marring, specialized lower nest. High-sensitivity optoelectronic safety light curtains secure the workspace before the machine cycle initiates.
Phase 2: Breakthrough Simultaneous Servo Pressing
Once initiated, the machine achieves breakthrough simultaneous high-precision pressing of the steerer tube and dual stanchions in a single station. Driven by high-torque electric servo controllers rather than unstable hydraulic fluid, the upper rams slide downward under exact velocity profiles.
Throughout the press stroke, the internal system continuously monitors the mating force against displacement. If any component shows an out-of-tolerance press-fit resistance curve, the machine stops safely to protect the assembly from structural stress damage.
Phase 3: Seamless MES Integration and Output
Following completion of the press profile, the system registers a digital signature for the completed part. This programmed cell seamlessly integrates with the factory MES system to achieve 100% force and displacement traceability. This configuration significantly maximizes production yield and fully satisfies the rigorous factory audit standards of top-tier global brands.
How Automation Improves Bicycle Part Quality and Consistency
Transitioning to a dedicated bicycle component machining automation line offers significant benefits for part quality and process control:
Absolute Parallelism of Fork Legs
Because the dual stanchions and steerer tube are pressed down concurrently in a single, rigidly guided structural station, individual twisting and skewing are eliminated. This ensures the fork legs maintain optimal parallelism, preventing downstream suspension binding.
Force-Displacement Signature Verification
Manual hydraulic pressing is blind to internal component tolerance variations. JIA KUN’s servo electric control records a distinct force-versus-displacement curve for every joint. If a tube bore is machined too loose or too tight, the system flags the part instantly, ensuring no "soft-joint" components leave the factory floor.
Non-Destructive Mechanical Jointing
Standard hydraulic cylinders continue applying pressure until hitting a physical travel limit, which can risk cracking cast aluminum components. A smart electric servo center drops torque automatically the moment the required assembly depth parameter is verified, ensuring non-destructive jointing.
Key Results of the Project
By replacing scattered, manually operated machines with an integrated automated line, the manufacturer achieved several key operational goals:
Optimized Production Planning: Moving to a connected production flow provided highly predictable output rates, allowing the client to plan their schedules and meet delivery timelines with confidence.
Reduced Manual Handling Steps: Eliminating manual transfers between separate machining stations significantly lowered the risk of material scratches and component damage.
Consistent Component Quality: Automating the clamping and pressing sequences minimized shift-to-shift variations, helping the customer maintain tight geometric tolerances over long production runs.
Improved Workforce Utilization: The automated line reduced the need for highly repetitive manual loading and inspection tasks, allowing the manufacturer to reallocate their technical staff to safer, more valuable roles.
Scalable Production Foundation: The modular design of the equipment gives the manufacturer a reliable foundation for future capacity expansion or product modifications.
Why Customized Automation Matters for Bicycle Manufacturers
No two bicycle component factories share the exact same floor layout, material specifications, or product mixes. A standard workshop utility press cannot meet the extreme throughput, real-time sensor feedback, and tight parallel alignment requirements of advanced parts like air-suspension e-bike forks, bicycle front fork machining machines, or specialized chassis assemblies.
As an experienced custom automation equipment manufacturer, JIA KUN Machinery goes beyond simply supplying machinery. We partner with our clients to design tailored manufacturing solutions.
Our engineering team analyzes your specific part geometries, fit-up tolerances, floor space limitations, and production targets to develop optimized manufacturing systems. Whether modifying an intelligent assembly cell or implementing a high-speed bicycle tube processing machine, our goal is to deliver an automated system that integrates smoothly into your facility and provides a reliable return on investment.
Build Your Next Bicycle Parts Automation Line with JIA KUN
Are you ready to optimize your production floor, address labor constraints, and improve component consistency? JIA KUN Machinery is here to help you develop a tailored bicycle parts processing automation strategy.
To help our engineering team assess your project and design the most effective solution for your facility, please provide us with the following details:
Part Drawings & Technical Specifications: 2D or 3D CAD files indicating critical press-fit interferences and dimensions.
Material Types: Specific aluminum alloys, carbon steel parameters, or anodized finish classifications.
Target Production Capacity: Your required daily, weekly, or annual output targets.
Current Manufacturing Workflow: A brief overview of your current assembly steps and bottlenecks.
Desired Cycle Time: Your target processing time per finished fork assembly.
Contact JIA KUN Machinery today to share your project specifications and schedule a technical consultation with our engineering team. Let's work together to build a more efficient, automated production line.
FAQ (Frequently Asked Questions)
Q1: What specific bicycle components can be processed using JIA KUN’s automation equipment?
A: Our customized machinery is designed to process a wide variety of precision metal parts. This includes bicycle front forks (crowns, steerer tubes, and stanchions), seat tubes, suspension components, central movement shells, frame dropouts, and various custom-profiled aluminum alloy tubes.
Q2: Why is servo-driven pressing superior to conventional hydraulic pressing for bicycle front forks?
A: Servo pressing provides micron-level control over travel velocity and stopping position, alongside constant force tracking. Unlike hydraulic systems, which expand with changing fluid temperatures and lack built-in monitoring, servo drives eliminate over-pressing risks and provide 100% electronic quality confirmation.
Q3: How does the system achieve traceability, and what information is shared with the factory MES?
A: The JIA KUN Smart Servo Press Center records peak force, insertion depth, and the entire pressure-stroke curve for every single joint. This data signature is tied to a part ID and uploaded to your factory MES system via Ethernet, providing historical traceability for quality control and audits.
Q4: Can the fixtures be adjusted to accommodate different fork offsets or stanchion diameters?
A: Yes. The center is engineered with modular quick-change fixture baseplates and adjustable guide tracks. Operators can change between different cross-braced fork layouts efficiently by swapping the positioning inserts and selecting the corresponding part profile on the touchscreen console.
Q5: Is it possible to integrate automated detection or checking sensors into this press center?
A: Absolutely. We can integrate advanced sensor positioning networks, laser triangulation checks, or electronic proximity switches directly into the tooling array. These sensors verify that all component parts are fully seated and aligned before the servo drive applies force, helping to eliminate assembly errors.
