How Automated CNC Production Lines Help Bicycle Manufacturers Improve Quality, Consistency, and Productivity
How Automated CNC Production Lines Help Bicycle Manufacturers Improve Quality, Consistency, and Productivity
The global bicycle and e-bike manufacturing sectors are experiencing an unprecedented push toward technical refinement. Today’s consumers and regulatory frameworks demand critical structural components—such as bicycle front forks, steerer tubes, vertical tubes, and suspension systems—that meet strict mechanical strength, geometric straightness, and thread-fit tolerances. However, scaling up to meet this demand while maintaining high quality presents significant production hurdles.
For high-volume manufacturers, relying on traditional, fragmented multi-step machining setups is becoming less viable. Achieving a smooth transition from labor-intensive setups to stable, high-throughput manufacturing requires a strategic shift. Implementing specialized bicycle parts automation equipment, such as integrated, continuous multi-process production lines, is no longer just an optional upgrade; it is a critical strategy for staying competitive in a demanding global market.

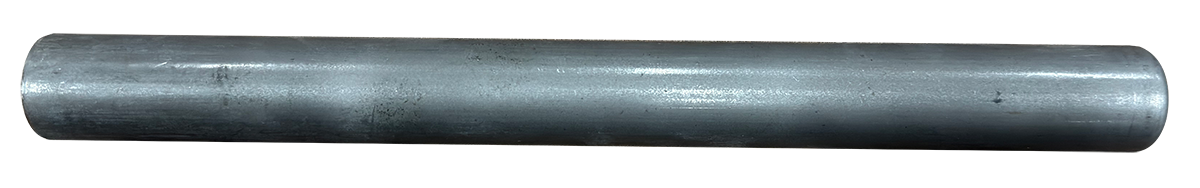

Vertical Tube
The Challenge: Why Traditional Bicycle Parts Processing Becomes a Bottleneck
Many bicycle component manufacturers still rely on traditional workshop layouts where operators manually move steel or aluminum raw profiles across isolated, individual standalone workstations to shape a steerer tube. A single finished steerer tube requires progressive metal forming, necking, end-conditioning, and high-precision threading. When these steps are handled independently, severe production bottlenecks occur:
High Dependency on Multi-Operator Labor: Moving bulk raw tubes sequentially through standalone stretching jacks, manual spin-forming machinery, detached lathe chamfering stations, and independent thread-rolling equipment requires a large team of operators. Recruiting and maintaining this staff is increasingly difficult.
Variability in Quality and Concentricity Drift: When a tube is un-clamped and re-clamped multiple times across different machines, cumulative positioning errors are inevitable. This can cause the outer diameter profile to drift out of concentricity relative to the threaded section, leading to assembly issues during fork-crown press-fitting or headset installation.
Frequent Material Scratches and Transit Damage: Manually piling thin-walled aluminum or steel steerer tubes into transfer bins between distant machine bays introduces a high risk of part-on-part impact dents, surface scoring, or missed processing steps (such as internal deburring).
Equipment Cycle Imbalances and Idle Stations: Individual standalone machines have vastly different cycle times. For instance, manual spin-forming takes much longer than thread cutting, creating uneven material piles and causing downstream production stations to sit idle waiting for parts.
Lack of Continuous Process Monitoring: Fragmented single-operation setups cannot support synchronized data tracking or real-time inline checking, making it difficult to detect tool wear or hydraulic forming pressure variations before a batch goes out of spec.
A Representative Automation Project for Bicycle Component Production
To see how these challenges can be addressed, let's look at a representative project engineered by JIA KUN Machinery featuring our state-of-the-art Automatic Steerer Tube Processing Line for Stretching, Spinning, Chamfering & Threading , designed to turn raw tube inventory into high-precision, finished components in one continuous flow.
Initial Client Process and Requirements
The client originally utilized four individual standalone production cells to manufacture steer tubes for premium mountain bikes. One machine stretched the tube to size, a separate rotary swaging machine necked the profile, a basic lathe chamfered the ends, and a manual thread roller cut the external stem threads. This required four separate operators and generated high scrap rates due to handling marks and alignment drift.
Faced with a surge in international orders and strict delivery deadlines, the manufacturer required a highly integrated bicycle manufacturing automation solution capable of managing the entire transformation process—from raw tube stock to a precision-finished piece—in a single continuous workspace. They needed an engineering partner capable of converting this fragmented operation into a continuous, high-technology, automated workflow.
JIA KUN’s Design Philosophy: Stable Mass Production First
When evaluating a new project, JIA KUN Machinery focuses on a core engineering philosophy: prioritizing stable mass production over raw single-machine speed. Optimizing a single machining step by a couple of seconds matters little if the overall line frequently stops due to chip nest clogs, complex fixture changeovers, or tool alignment adjustments. True productivity comes from system-wide reliability and predictable cycle times.
To achieve this stability, JIA KUN Machinery focuses on a comprehensive design approach for our high-end continuous processing lines:
All-In-One Linear Integration: We consolidate the entire manufacturing sequence—stretching, spinning, chamfering, and threading—into a single synchronized linear production line.
Balanced Process Flow Optimization: We tune the mechanical feed and cycle times of each active module concurrently, ensuring parts transition smoothly between stations without bottlenecking.
Non-Marring Workholding Matrices: We design custom-engineered collet arrays that wrap around the tube body, distributing hydraulic clamping force evenly to prevent scratching or crushing thin-walled profiles.
Modular Multi-Process Versatility: By employing programmable CNC tool paths and quick-change die configurations, we ensure the automated line can quickly adapt to future changes in tube length, diameter, or thread pitch.
From Manual Handling to an Automated CNC Production Flow
For this representative project, JIA KUN Machinery deployed its advanced Automatic Steerer Tube Processing Line, connecting complex multi-axis forming heads and automated material transfer mechanisms into a single, synchronized production flow.
Phase 1: Automatic Separation and In-Feed Orientation
Raw cylindrical stock is placed onto the high-capacity bulk hopper system. The cell's integrated automatic loading and unloading system automatically separates individual tubes, checks their linear alignment, and places them onto a heavy-duty walking-beam conveyor track.
Phase 2: Integrated Stretching and Spin-Forming
The component automatically advances into the progressive forming block. Here, the machine carries out advanced stretching and rotary spin-forming processes to size the main wall thickness and shape precise, consistent conical reductions at the tube ends. This stage ensures an optimal outer profile and consistent internal wall strength, matching the rigorous mechanical requirements of premium fork joints.
Phase 3: High-Speed Chamfering and Threading
Once formed, the tube is transferred to the high-speed end-conditioning center. Specialized multi-axis tool assemblies cut inner and outer chamfers concurrently to remove burrs, while a rigid CNC threading head cuts precise external threads into the stem attachment area.
This continuous, all-in-one processing optimizes the cycle time to approximately 20–25 seconds per piece . This configuration is engineered for high-volume continuous production, boosting workshop throughput while completely eliminating manual handling steps.
How Automation Improves Bicycle Part Quality and Consistency
Transitioning to a dedicated bicycle component machining automation line offers significant benefits for part quality and process control:
Elimination of Multi-Machine Alignment Drift
Because the steerer tube stays locked on a unified, automated conveyor axis throughout the entire process, cumulative errors from manual reloading are eliminated. The threads remain perfectly concentric to the spun tube body, facilitating smooth headset adjustments.
Precise Wall Sizing and Uniform Forging Force
Manual rotary forming often suffers from inconsistent push speeds, which can cause wall thickness variations. JIA KUN’s automated multi-stage processing line relies on servo-driven feeds to apply consistent forming force, preserving structural integrity across long production runs.
Integrated Inline Tool Protection
Our advanced CNC automation for bicycle components actively tracks spindle torque profiles during the chamfering and threading cycles. If a cutting tool chips or meets material variations, the line triggers an automated alert, ensuring no defective parts advance to assembly.
Key Results of the Project
By replacing scattered, manually operated machines with an integrated automated line, the manufacturer achieved several key operational goals:
Optimized Production Planning: Moving to a connected production flow provided highly predictable output rates, allowing the client to plan their schedules and meet delivery timelines with confidence.
Reduced Manual Handling Steps: Eliminating manual transfers between separate machining stations significantly lowered the risk of material scratches and component damage.
Consistent Component Quality: Automating the clamping and processing sequences minimized shift-to-shift variations, helping the customer maintain tight geometric tolerances over long production runs.
Improved Workforce Utilization: The automated line reduced the need for highly repetitive manual loading and transfer tasks, allowing the manufacturer to reallocate their technical staff to safer, more valuable roles.
Scalable Production Foundation: The modular design of the equipment gives the manufacturer a reliable foundation for future capacity expansion or product modifications.
Why Customized Automation Matters for Bicycle Manufacturers
No two bicycle component factories share the exact same floor layout, material specifications, or product mixes. A standard workshop lathe or standalone threader cannot meet the high throughput, multi-process integration, and tight concentricity requirements of complex parts like progressive-taper bicycle front fork machining machines, e-bike steerer shafts, or custom-profiled suspension components.
As an experienced custom automation equipment manufacturer, JIA KUN Machinery goes beyond simply supplying machinery. We partner with our clients to design tailored manufacturing solutions.
Our engineering team analyzes your specific part geometries, wall thickness tolerances, floor space limitations, and production targets to develop optimized manufacturing systems. Whether modifying an integrated multi-process processing line or implementing a high-speed bicycle tube processing machine, our goal is to deliver an automated system that integrates smoothly into your facility and provides a reliable return on investment.
Build Your Next Bicycle Parts Automation Line with JIA KUN
Are you ready to optimize your production floor, address labor constraints, and improve component consistency? JIA KUN Machinery is here to help you develop a tailored bicycle parts processing automation strategy.
To help our engineering team assess your project and design the most effective solution for your facility, please provide us with the following details:
Part Drawings & Technical Specifications: 2D or 3D CAD files indicating critical thread sizes, taper angles, and tolerances.
Material Types: Specific carbon steel grades, high-strength aluminum alloy classifications, or titanium parameters.
Target Production Capacity: Your required daily, weekly, or annual output targets.
Current Manufacturing Workflow: A brief overview of your current machining steps and bottlenecks.
Desired Cycle Time: Your target processing time per finished steerer tube.
Contact JIA KUN Machinery today to share your project specifications and schedule a technical consultation with our engineering team. Let's work together to build a more efficient, automated production line.
FAQ (Frequently Asked Questions)
Q1: What specific bicycle components can be processed using JIA KUN’s automation equipment?
A: Our customized machinery is designed to process a wide variety of precision metal parts. This includes bicycle steerer tubes (vertical tubes), front forks (crowns, steer tubes, and stanchions), seat tubes, suspension components, central movement shells, frame dropouts, and various custom-profiled aluminum alloy tubes.
Q2: What are the primary process steps integrated within the Automatic Steerer Tube Processing Line?
A: The line integrates four major production steps into a single continuous workflow: material stretching to size, rotary spin-forming for end diameter reduction, double-end precision chamfering, and automated CNC threading.
Q3: How does the processing line ensure consistent thread quality on high-strength alloy tubes?
A: The JIA KUN line features a specialized CNC threading module that uses real-time torque feedback. It maintains rigid spindle tracking to ensure uniform thread depth and clean leads, keeping pitch profiles within strict international quality tolerances.
Q4: Can the machine be adjusted to handle different steerer tube lengths or diameters?
A: Yes. The processing line is built on a programmable CNC architecture and features modular clamping blocks. Operators can switch between different tube lengths (e.g., standard road bikes vs. long-travel suspension forks) by adjusting material indexing stops and selecting pre-saved part profiles on the HMI touchscreen panel.
Q5: Is it possible to integrate automated testing or vision sensors into this continuous processing line?
A: Absolutely. We can integrate high-precision laser sensors, air gauging rings, or industrial vision arrays directly into the transfer steps. These sensors can measure outer diameter sizing accuracy after spin-forming and verify thread parameters before final unloading, preventing out-of-tolerance parts from moving down the line.
