In the high-stakes manufacturing of premium mountain bike (MTB) and gravel components, the machining of separate parts is only half the race. The final assembly phase of a dropper seatpost is where product integrity is truly decided. Specifically, press-fitting the asymmetric seatpost head into the main aluminum telescopic tube requires extreme force regulation and micrometer-level structural positioning.
Because this structural interference joint must withstand intense rider weight, constant leverage stress, and maintain a perfect air-hydraulic pressure seal, the assembly cannot be left to guesswork. A minute misalignment or excessive press force during joining can instantly cause micro-cracks in the aluminum alloy tube, shave metal burrs into the sealing seat, or leave the components insufficiently bonded, leading to critical failure out on the trail.
To safeguard this critical production phase and eliminate the vulnerabilities of old-school assembly methods, JIA KUN Machinery has engineered the Smart Servo Press Machine for Seat Post & Tube. Utilizing advanced pure servo direct-drive technology and intelligent real-time data tracing, this system brings aerospace-grade precision to the bicycle manufacturing line.

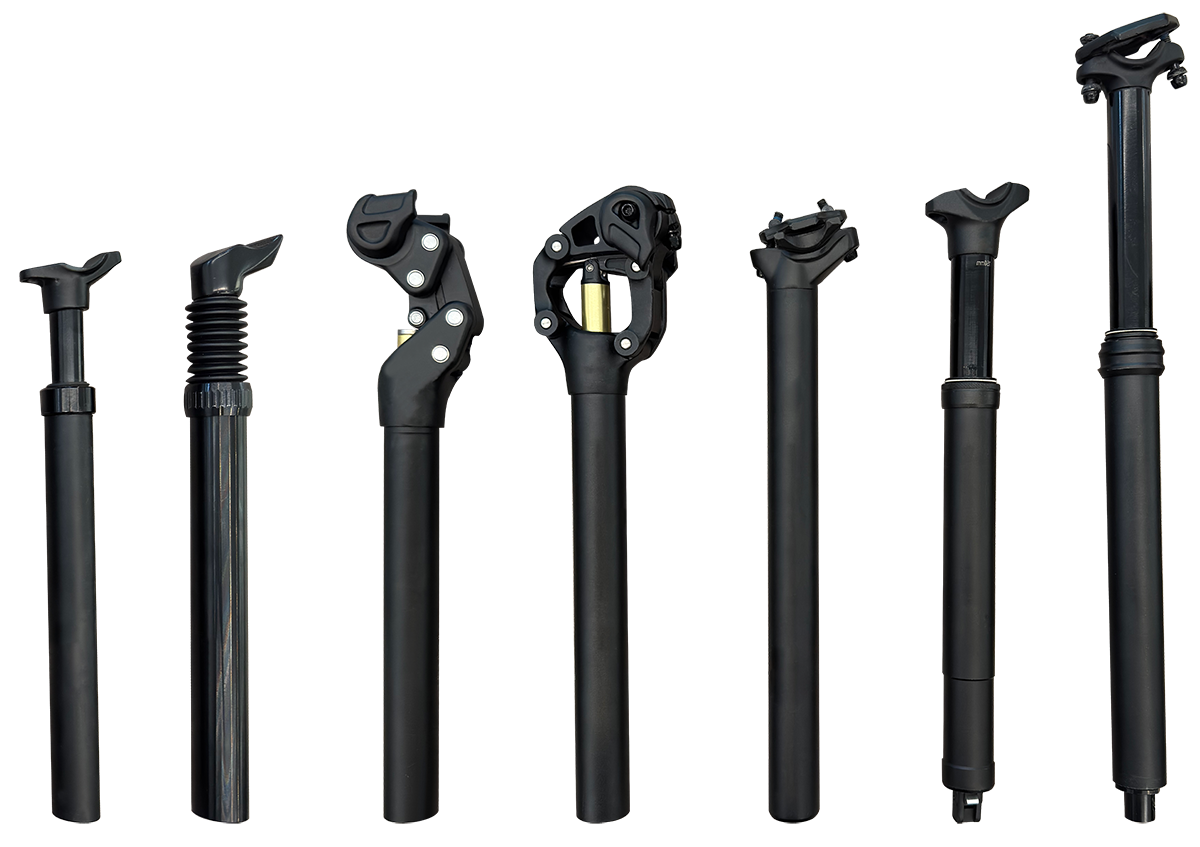

Dropper Seatpost
The Fatal Flaws of Traditional Hydraulic Press Fitting
Many component factories still rely on traditional hydraulic presses or standard pneumatic pistons for assembly. In a high-volume, premium B2B manufacturing workflow, these older methods introduce serious quality and operational vulnerabilities:
Blind Force Execution (No Real-Time Monitoring): Hydraulic systems push blindly until they hit a mechanical physical stop or pressure relief threshold. They cannot detect if a seatpost head went in slightly crooked, if raw component dimensions were out of tolerance, or if the tube wall is buckled during the stroke.
Oil Leakage and Shop Floor Contamination: Hydraulic systems require pumps, valves, and oil reservoirs that degrade over time. Hydraulic fluid leaks create clean-room and digital workshop contamination, posing constant environmental and workplace safety risks.
Thermal Drift Affecting Consistency: As hydraulic oil heats up during an intensive 24/7 production shift, its viscosity changes. This variance causes unpredictable force fluctuations, resulting in inconsistent press-fit depths and erratic component bonding quality across identical batches.
Zero Quality Traceability for Tier-1 Audits: Traditional presses offer no digital output. When a high-volume international buyer demands data proving that every unit in a 10,000-piece batch was assembled within strict force and displacement specifications, a traditional hydraulic system simply cannot provide the proof.
JIA KUN's Solution: Pure Servo Direct-Drive & Force-Displacement Tracing
JIA KUN Machinery’s smart servo press completely overhauls the assembly bay by substituting blind pressure with a software-driven, closed-loop smart fitting sequence:
[Smart Barcode Scan] ➔ [Component Position Staging] ➔ [Pure Servo Direct-Drive Press] ➔ [Real-Time Force/Distance Window Analysis] ➔ [Data Straight Connectivity Upload]
1. Smart Scanning and Part Identification
The assembly cycle begins with the operator or an automated robotic arm placing the seatpost head and tube into custom-engineered, non-marring nesting fixtures. The system integrates a smart scanning barcode module that scans the component's unique laser-etched serial code. This pairs the upcoming physical assembly profile directly with that specific serial number for total digital accountability.
2. High-Precision Pure Servo Direct-Drive Technology
Driven by a high-torque, closed-loop servo direct-drive motor coupled to a precision ball screw, the ram descends with micron-level motion sensitivity. Unlike a hydraulic cylinder that delivers a rigid, unyielding smash, the electric servo system constantly samples and regulates its position and pressing force thousands of times per second.
3. Fully Traceable Force & Displacement Metrics
As the press ram advances the seatpost head into the tube sleeve, the machine generates a live Force vs. Displacement curve ($F/s$) on the HMI touchscreen controller. The system evaluates this curve in real time using preset quality evaluation windows:
Initial Fit Phase: Checks if the insertion entry force matches proper interference tolerances (detecting loose or oversized parts).
Mid-Stroke Phase: Monitors smooth force progression (detecting internal bore galling, binding, or component misalignment).
Final Seating Phase: Verifies the exact final press depth against target force thresholds to ensure a perfectly aligned, structurally sound seat.
4. Direct Digital Workshop Data Connectivity
If the completed assembly curve stays inside the programmable parameters, the machine marks the assembly as a 100% verified pass. The data connectivity module then automatically archives the force logs, displacement charts, and time stamps directly to the factory's central MES or ERP architecture via straight data link networks. Any outlier part is instantly locked out from further routing, guaranteeing a zero-defect shipment.
Key Technical Advantages of the JIA KUN Smart Servo Press
Significantly Boosted Production Yield: By catching raw material dimensional errors or out-of-round tubing variations mid-stroke, the machine halts before destroying high-value machined components, bringing your factory's final assembly line yield closer to absolute perfection.
Engineered for High-Efficiency, Clean Digital Workshops: Operating entirely without oil, this clean electric unit eliminates messy spills, reduces factory noise pollution, and consumes power only during the active press stroke, reducing your plant's carbon and energy overhead.
Instant Programmable Product Swaps: Switching between different dropper post travel options, tube diameters, or seat post head models requires zero mechanical valve recalibration. Technical supervisors simply load alternative pre-saved digital recipe profiles from the secure CNC touchscreen interface.
Rigid reference continuity with No Thermal Drift: Because the electric servo direct-drive mechanism is unaffected by ambient temperature changes or multi-shift heat accumulation, the pressing velocity and positional repeating metrics remain perfectly identical from the first morning unit to the midnight run.
Build an Uncompromising Assembly Flow with JIA KUN
Whether your manufacturing facility is scaling up automated production for complex dropper seatpost heads, precision inner/outer tubes, structural bicycle front fork columns, or high-performance automotive suspension cartridges, JIA KUN Machinery delivers the industrial automation engineering your factory floor needs to stay ahead.
Eliminate the risks of unmonitored manual or hydraulic assembly and embrace the future of data-verified manufacturing. Contact JIA KUN Machinery today to consult with our engineering team, submit your joint interference parameters, and receive a customized B2B technical assessment for your digital workshop upgrade.
