Dual Rotary and Gantry Synergy: Revolutionizing High-Volume Bicycle Quick Release Component Production
Dual Rotary and Gantry Synergy: Revolutionizing High-Volume Bicycle Quick Release Component Production
In the mass production of commercial and high-performance bicycle hardware, optimization down to the smallest mechanism is vital for maintaining a profitable B2B supply chain. The Bicycle Quick Release assembly—including skewers, cam levers, and threaded caps—is a ubiquitous structural component requiring exceptional tensile dependability and precision manufacturing.
Machining quick-release components demands an intensive multi-tasking sequence. Forged or extruded alloy blanks must undergo multi-axis profiling, cross-hole cam pin drilling, clearance slot milling, and high-torque internal/external threaded tapping.
When component suppliers rely on scattered, standalone equipment to execute these operations individually, the flow of material is continuously interrupted. To eliminate these process bottlenecks, JIA KUN Machinery has engineered the Bicycle Quick Release Multi-Station Machining Line. By combining an advanced dual multi-station rotary table system with high-speed overhead gantry robotics, this production line delivers continuous, integrated multi-process machining within a single closed loop.

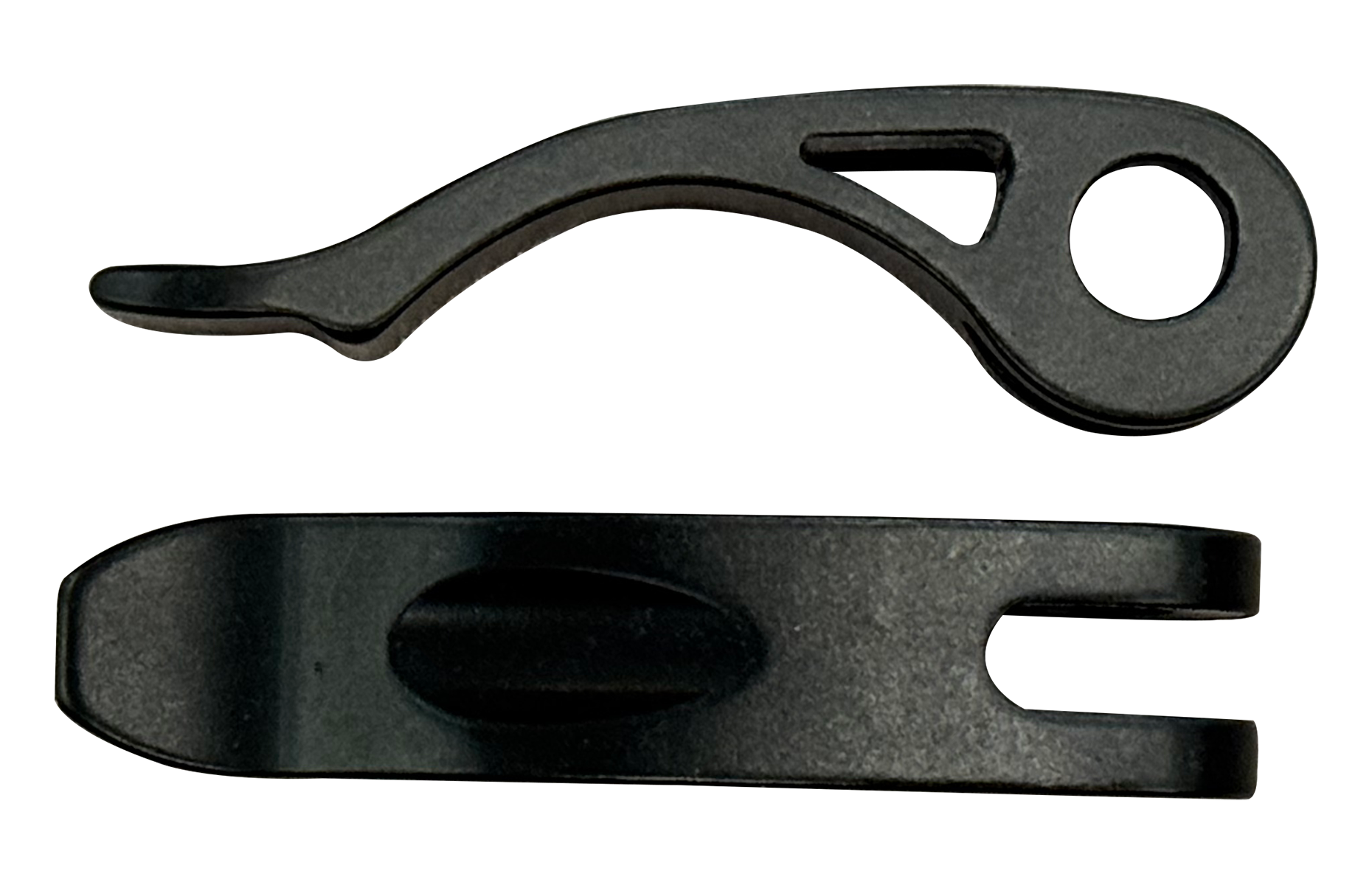

Quick Release
The Operational Vulnerabilities of Disjointed Machining Cells
Relying on separate manual machine setups to handle small, complex quick-release elements introduces significant quality and cost liabilities on the shop floor:
Accumulated Repositioning Deviations: Manually shifting a small component from a lathe to independent drilling or tapping stations alters physical reference datums. This variation degrades the critical alignment and concentricity between the lever cam profile and its cross-pin axis, leading to operational binding.
Inflated Work-in-Process (WIP) and Disjointed Takt Times: Mismatched cycle times between standalone turning and milling setups cause half-finished parts to pile up in storage bins. This heavy WIP accumulation complicates factory scheduling and prolongs order lead times.
Elevated Scratch Rates and Human Error: Quick-release skewers and levers demand pristine surface cosmetics prior to decorative anodizing. Repetitive manual handling and metal-on-metal friction during scattered transfer sequences introduce high defect rates due to surface marring.
JIA KUN's Solution: Dual Multi-Station Rotary Tables with Gantry Robots
JIA KUN Machinery’s integrated production line condenses a complete multi-machining cycle into an ultra-fast, predictable processing cadence of approximately 20 to 25 seconds per piece.
[Automatic Material Staging] ➔ [Overhead Gantry High-Speed Pick] ➔ [Dual Multi-Station Rotary Synced Platform] ➔ [Simultaneous Turning, Drilling, Milling & Tapping] ➔ [Automated Marring-Free Outfeed]
1. High-Speed Overhead Gantry Robot Handling
The automated cell utilizes a high-rigidity, overhead multi-axis gantry robot framework acting as the centralized transport core. Moving at high speeds with precise positioning accuracy, the gantry robot's soft-touch pneumatic grippers effortlessly extract blanks from the infeed channel and smoothly index them directly into the machining matrix, completely removing manual transit intervals.
2. Dual Multi-Station Rotary Table Architecture
The defining engineering breakthrough of this system is the integration of dual multi-station rotary table units linked synchronously by the gantry network. This unique layout divides complex processing phases into parallel workflows. Multiple specialized tool spindles operate simultaneously on separate workpieces held along indexing workholding heads. Within a single locked mechanical setup, the line coordinates:
High-rigidity external contour turning and profiling.
Transverse cam pin cross-hole drilling and counterboring.
Precision clearance slot and lever gap milling.
High-torque internal/external threaded tapping.
Because workpieces step through these multi-axis phases under a unified indexing mechanism without breaking their original clamping references, positional drift is eliminated, securing perfect thread-to-axis perpendicularity.
3. Automated Cleaning and Precision Outfeed
Immediately following the final processing phase, completed quick-release components are automatically discharged onto a clean collection system. Integrated high-pressure cutting fluid jets and automated air-blast networks continuously flush away metal chips from the clamping faces, keeping the interior pristine and ensuring scratch-free surface cosmetics.
Key Technical Advantages of the JIA KUN Multi-Station Production Line
Blazing Fast, Predictable Capacity: Operating at a highly optimized cycle time of 20–25 seconds per piece, this line delivers the massive daily output required to satisfy intensive contract demands from international OEMs and high-volume assembly factories.
Drastic Reduction in Direct Labor Costs: This multi-machine line consolidates what traditionally required four or five standalone operators into a single self-feeding automated cell. One technical technician can comfortably manage a bank of multiple connected JIA KUN automated lines.
Uncompromising Clamping Consistency: Rigid mechanical indexing replaces variable human clamping techniques. Clamping pressure remains completely uniform across continuous 24/7 production shifts, slashing internal scrap and reject rates to near-zero levels.
Optimized Floor Space Efficiency: Compared to operating a decentralized footprint of multiple independent CNC lathes, drill presses, and tapping centers, this highly integrated dual-rotary cell occupies a fraction of your valuable workshop floor space.
Partner with JIA KUN to Modernize Your Components Manufacturing
Whether your production facility is scaling up manufacturing for premium dropper seatpost heads, specialized dropper post tubes, or high-volume bicycle quick release parts, JIA KUN Machinery delivers the automated system integration expertise your business needs to stay ahead.
Eliminate the hidden costs of manual material handling and transition to a highly automated continuous mass production environment. Contact JIA KUN Machinery today to consult with our industrial automation engineering team, share your component CAD drawings, and receive a comprehensive B2B technical assessment for your production upgrade.
