In the premium mountain bike (MTB) and gravel segments, the dropper seatpost is an engineering marvel that demands absolute geometric perfection. For high-volume manufacturers, the true production challenge lies in machining the core cylindrical structures: the Dropper Post Outer Tube and the Dropper Post Inner Tube.
These telescopic tubes operate under tight tolerances. The inner tube must slide smoothly within the outer tube with minimal friction, yet maintain a perfect mechanical seal to prevent oil or air leakage from the internal hydraulic cartridge. Any microscopic deviation in concentricity, cylindrical straightness, or dimensional variance across the tube length will cause the seatpost to stick, rattle, or leak fluid.
To eliminate the inconsistencies of traditional setups, JIA KUN Machinery has engineered the Automated Machining Line for Dropper Post Outer Tubes. By integrating high-speed automated loading, custom dual-end workholding, and automated palletizing, this specialized production system delivers rapid, high-precision machining tailored specifically for high-end bicycle and automotive suspension components.

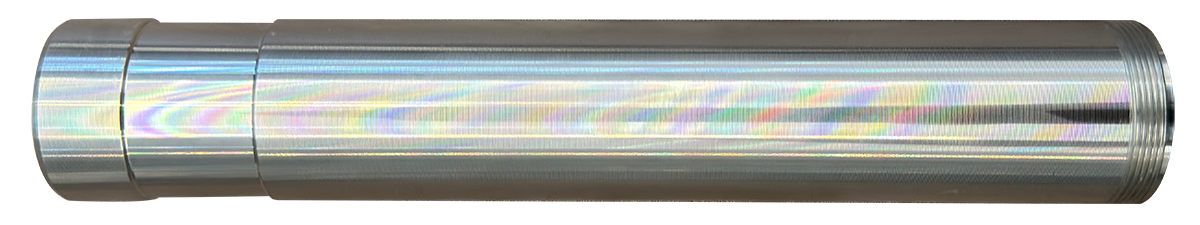

Dropper Post Outer Tube
Traditional Tube Processing Bottlenecks: Concentricity and Handling
When processing thin-walled aluminum or alloy tubes using standard standalone CNC lathes, manufacturers frequently encounter severe quality and cost bottlenecks:
Concentricity Errors from Multi-Step Setups: Turning one end of a tube, manually flipping it, and then turning the other end introduces significant reference stack-up errors. Maintaining absolute concentricity between the outer diameter (OD), the left bore, and the right bore is nearly impossible when the component is repositioned across multiple individual setups.
Thin-Wall Tube Deflection: Traditional hydraulic lathe chucks often crush or distort thin-walled aluminum tubing if clamping pressure is uncalibrated. This micro-distortion results in an out-of-round tube once released from the fixture.
Surface Scuffing and Manual Handling Hazards: Highly polished or raw extruded tubes are prone to deep surface scratches when handled by operators or stacked carelessly in transport bins. These imperfections lead to high reject rates during subsequent surface anodizing stages.
JIA KUN's Solution: Simultaneous Dual-End Turning and Linked Automation
JIA KUN Machinery's automated production cell completely overhauls tube manufacturing by consolidating multiple machining steps into a singular, unmanned cycle time of approximately 25 seconds per piece.
[Automatic Pallet Staging] ➔ [Gantry Loading] ➔ [Simultaneous Dual-End & OD Turning] ➔ [Automated Palletizing Output]
1. Integrated Automated Loading and Staging
The manufacturing sequence begins at the automated infeed staging area. Raw tube blanks are arranged efficiently in structural material trays. A high-speed, dual-arm gantry robot grips the raw tube with non-marring specialized end-effectors, clearing the machine doors and seamlessly loading the tube blank into the enclosed CNC turning unit without manual assistance.
2. High-Precision Simultaneous Turning of Both Ends and OD
The core breakthrough of the JIA KUN tube line is its ability to perform simultaneous high-precision turning of both ends and the outer diameter (OD) in a single locked clamping cycle. Specialized, synchronized horizontal tooling heads machine both internal bore profiles, chamfers, and the external tube surface at the exact same moment. Because the workpiece never breaks reference or changes fixtures mid-process, it secures the exceptional concentricity, roundness, and linear dimensional accuracy required for smooth telescopic operation.
3. Integrated Post-Machining Palletizing System
Once the ultra-fast machining cycle is finished, the gantry robot instantly retrieves the completed inner or outer tube, moves it past automated chip-clearing blowers, and deposits it directly into a precision automated palletizing system. Components are nested neatly in a specialized grid arrangement to prevent any metal-on-metal collision or scratch tracking, maintaining flawless surface integrity prior to final inspection.
Key Advantages of the JIA KUN Automated Tube Machining Line
Blazing Fast, Stable Cycle Times: Operating at a stable cycle time of up to 25 seconds per piece (depending on specific part geometries), this system matches the intensive output requirements of international tier-one bicycle component buyers and high-volume automotive shock absorber factories.
Unmanned, Connected Continuous Flow: By linking loading, clamping, dual-axis turning, and palletizing into a unified automated cell, the system moves the factory floor from scattered manual operations to a clean, highly predictable, connected material flow. One technician can oversee multiple connected JIA KUN lines.
Preservation of Delicate Surface Finishes: Dropper post tubes require a mirror-smooth outer finish to protect internal rubber wipers and seals. JIA KUN’s specialized non-marring workholding and robotic gripper pads ensure zero metal-on-metal scraping throughout the entire automated sequence.
Cross-Industry Application Versatility: While custom-configured for the bicycle dropper post market, this high-precision line is equally suited for manufacturing automotive steering columns, gas spring cylinders, motorcycle shock absorber sleeves, and other precision aluminum tube processing applications.
Scale Your Tube Production Quality with JIA KUN
Whether your factory floor is scaling production on dropper post inner tubes, outer tube sleeves, or structural bicycle front fork components, JIA KUN Machinery provides the specialized system integration your business requires to succeed.
Secure absolute process consistency and insulation from labor shortages. Contact JIA KUN Machinery today to consult with our industrial automation engineering team, share your engineering drawings, and receive a customized B2B technical assessment for your production facility.
