The engineering behind adjustable dropper seatposts leaves zero room for error. While the outer tube sleeve requires exact dimensional tolerances, the Dropper Post Inner Tube is subjected to even more demanding processing constraints. As the telescopic core that actively glides up and down, its surface houses critical guiding keyways, precise sealing lips, and internal actuation cross-holes.
Machining these multi-tasking features on thin-walled aluminum tubing usually requires independent routing across a lathe for turning and then a milling center for slotting. This disjointed transfer kills production velocity.
To overcome this, JIA KUN Machinery has developed the Automated Machining Line for Dropper Post Inner Tubes. By unifying a high-precision bar feeder mechanism, advanced live-tool multi-tasking CNC systems, and automated robotic unloading, this cell establishes a continuous, touchless manufacturing flow optimized for high-volume bicycle and automotive components.

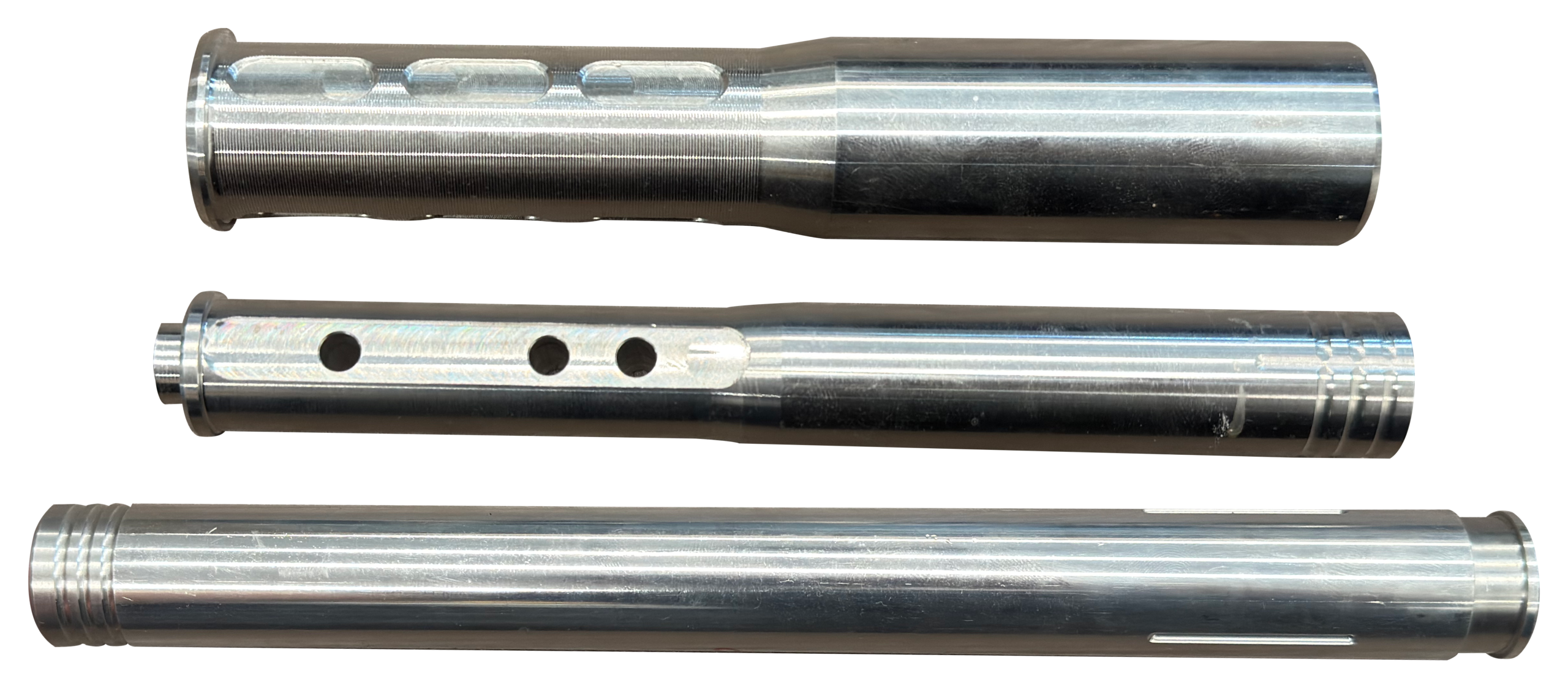

Dropper Post Inner Tube
The Bottlenecks of Split Turning and Milling Operations
When factories rely on separate standalone machines to turn and mill dropper post inner tubes, they consistently run into several major operational challenges:
Reference Desynchronization: Turning a tube on a lathe, unloading it, and reloading it into a milling fixture to cut keyways introduces clamping alignment errors. If the milled slots are not perfectly concentric and parallel with the turned outer diameter, the seatpost will experience friction, binding, or premature component wear.
Inefficient Raw Material Loading: Manually sawing raw tubing into short individual slugs before loading them into a chuck wastes material, inflates cycle times, and creates excessive manual handling steps.
Surface Deflection and Damage: Repeatedly moving highly polished aluminum alloy tubes between operators and transport bins introduces high scratch rates, significantly degrading the surface quality required before downstream hard anodizing.
JIA KUN's Solution: Continuous Bar-Fed Multi-Tasking Automation
JIA KUN Machinery’s automated inner tube line merges bar raw material feeding, turning, cross-milling, and unloading into a singular, fully closed automated loop:
[High-Precision Bar Feeder] ➔ [Automated Continuous Infeed] ➔ [Simultaneous Turn-Milling Cycle] ➔ [Robotic Unloading]
1. High-Precision Automatic Bar Feeding
The production sequence begins with long, raw alloy tube stock loaded into an integrated high-precision automatic bar feeder system. Operating with smooth hydrodynamic support and high-accuracy feeding control, it continuously pushes the long raw tubing straight through the CNC spindle bore. This eliminates the need for manual pre-sawing and ensures a constant material supply without human intervention.
2. Fully Automated Multi-Tasking Turn-Milling Cycle
Once positioned inside the custom collet workholding of the main CNC multi-tasking center, the machine locks down the material. Utilizing independent spindles and live-powered tooling arrays, the machine executes highly efficient turning of the outer diameter alongside high-precision milling of guiding keyways, actuation windows, and cross-holes within the same single clamping cycle. Because the workpiece never breaks reference between turning and milling, the system guarantees absolute concentricity, axial parallelism, and perfect dimensional relationships across all features.
3. Integrated Overhead Robotic Unloading
Immediately following the final cutoff operation, an integrated overhead robotic unloader reaches into the machining zone. Equipped with specialized, non-marring gripper pads, the robot captures the finished inner tube, carries it smoothly past integrated chip-purging air-blow systems, and sets it gently down onto an organized outfeed tray. This complete hands-free cycle ensures zero metal-on-metal striking, maintaining pristine surface cosmetics.
Key Advantages of the JIA KUN Inner Tube Automated Line
Perfect Clamping Consistency & Lower Labor Costs: By combining raw bar feeding with automatic robotic extraction, the human element is completely removed from the loading cycle. Clamping pressure and positioning remain identical across 24/7 continuous runs, shifting operators into high-level system supervisors managing multiple automated cells.
Elimination of Inter-Station Material WIP: Consolidating turning and milling into a single machine cell stops parts from piling up in half-finished buffer bins on the shop floor. Production planning becomes predictable, giving B2B managers precise control over delivery forecasts.
Preservation of Flawless Cosmetic Finishes: Dropper post inner tubes demand a mirror-smooth outer surface to prevent hydraulic fluid leaks against internal rubber seals. JIA KUN’s non-marring robotic grippers and specialized collet systems ensure zero scratch tracking throughout the entire automated process.
Versatile Cross-Industry Scale: While highly tailored for the high-end mountain bike and gravel e-bike markets, this high-efficiency turn-milling line is perfectly suited for producing automotive shock absorber valves, gas spring pistons, and other precision aluminum tube structures.
Partner with JIA KUN for High-Volume Manufacturing Excellence
Whether your factory floor is scaling up production on dropper post inner tubes, outer sleeves, or structural bicycle front fork components, JIA KUN Machinery has the automated system integration expertise your facility needs to stay competitive.
Insulate your operations from labor shortages and stabilize your daily quality yield. Contact JIA KUN Machinery today to consult with our industrial automation engineering team, upload your component CAD drawings, and receive a customized B2B technical assessment for your production upgrade.
