In the competitive B2B bicycle parts manufacturing industry, optimizing the production of small, high-precision structural hardware is just as critical as machining large frame tubes. Components like the Upper Sleeve Plate, Lower Shim Plate, Adjusting Nut, and Stem Adjusting Nut form the backbone of a bicycle's headset, steering steering column, and clamping assemblies.
These small parts carry intense functional demands. Headset sleeve plates and adjusting nuts feature complex curved matching contours, non-standard threaded bores, and precise counterbores. Because they are processed in massive volumes, relying on scattered standalone equipment to execute independent turning, drilling, and tapping operations creates an operational bottleneck that slows down factory throughput.
To address this challenge and maximize efficiency, JIA KUN Machinery has engineered the Multi-Station Automated Production Line for Bicycle Washers. By integrating automated bulk feeding with an advanced multi-station synchronous processing architecture, this compact machine cell delivers high-precision, complete single-setup machining for core bicycle assembly components.

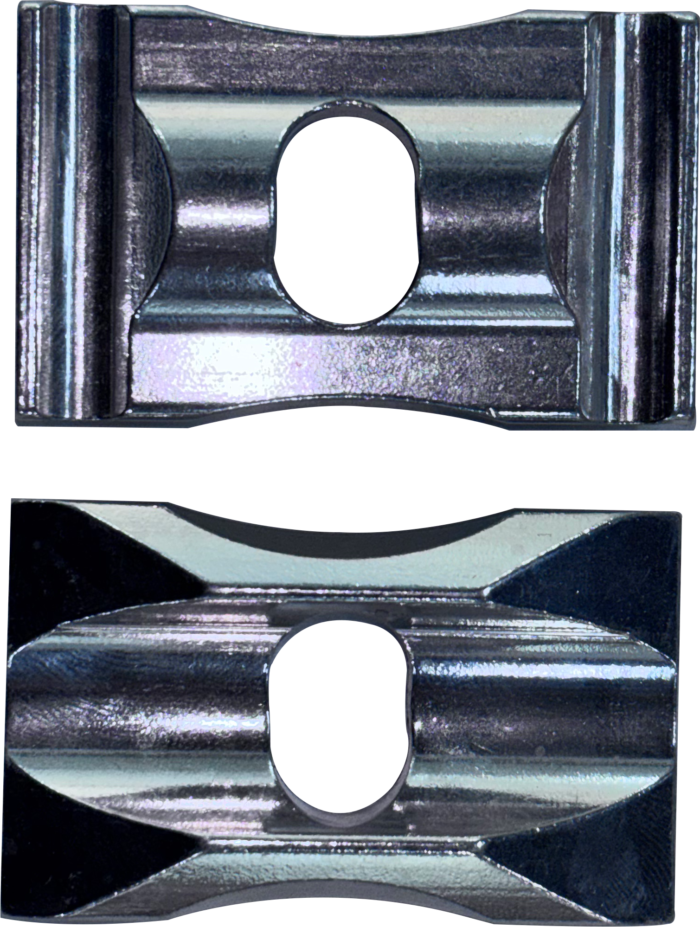

Upper Sleeve Plate

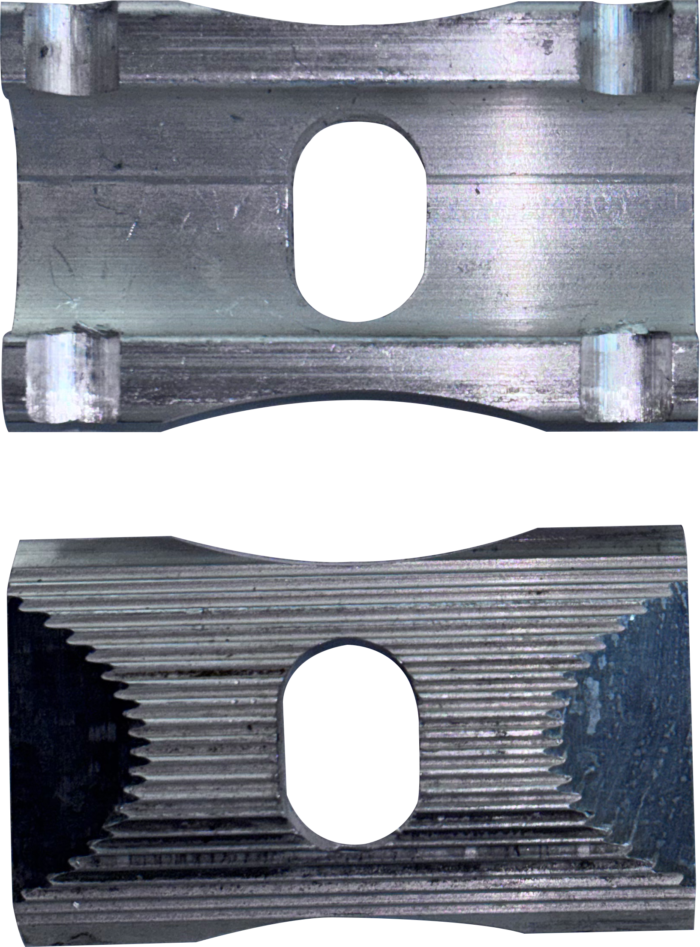

Lower shim plate

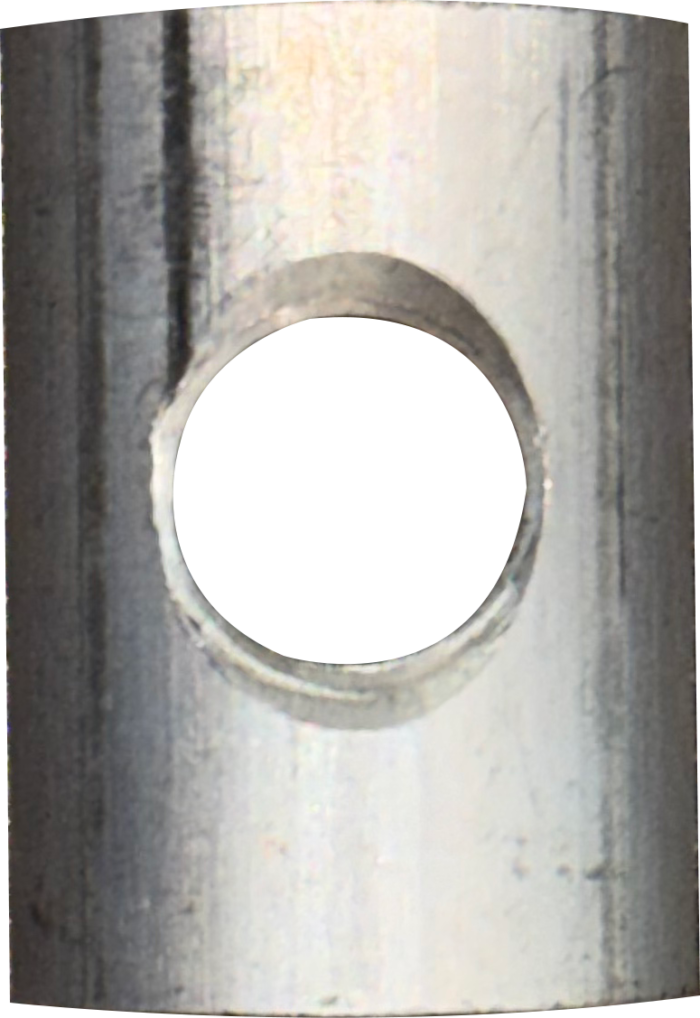

Adjusting Nut

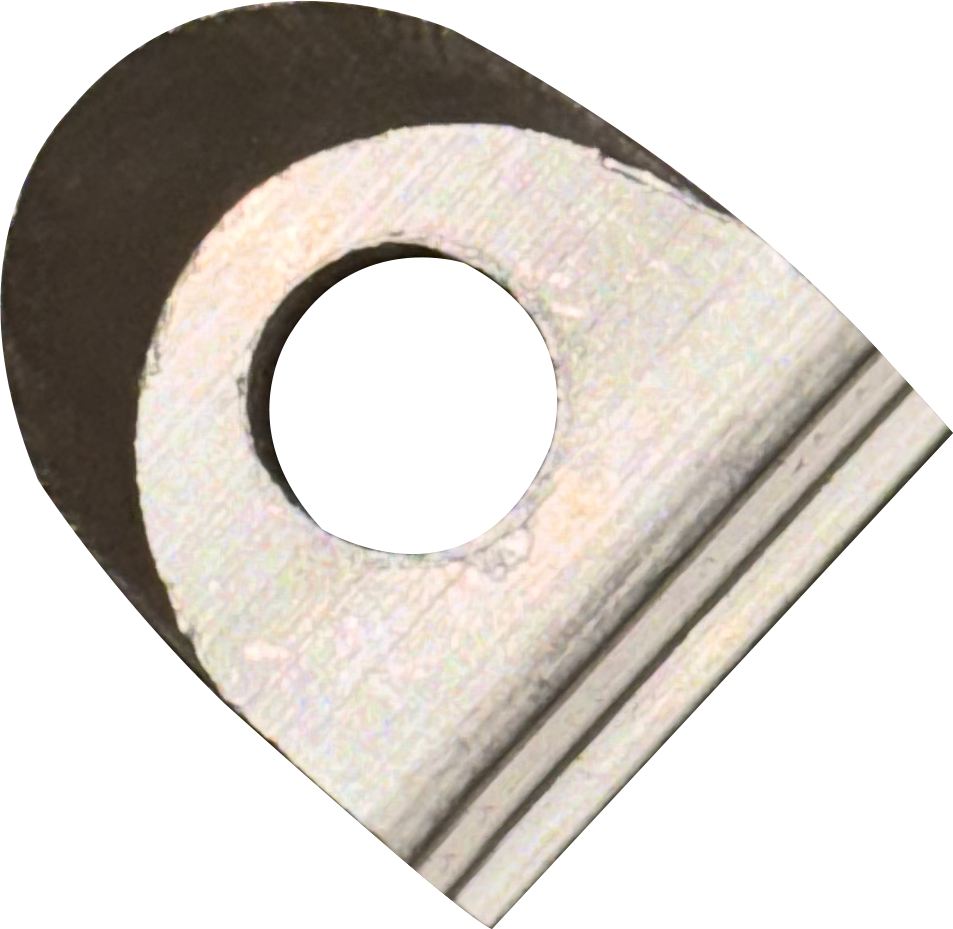

Stem Adjusting Nut
The Bottlenecks of Traditional Fragmented Machining for Small Hardware
When factories attempt to mass-produce complex headset plates, washers, and adjustment nuts using individual, standalone machine tools, they routinely encounter severe production bottlenecks:
Accumulated Repositioning Errors: Transferring a tiny, irregular part manually from a lathe chuck to a separate drilling fixture or tapping machine destroys reference consistency. Micro-variations in manual clamping lead to off-center threaded holes, compromising the final assembly's alignment.
Inflated Cycle Times and Low Labor Efficiency: Processing high-volume hardware via discrete single-operation machines requires excessive operator intervention. The machine spend substantial idle time waiting for manual loading, clearing chips, and checking parts, driving up labor costs while limiting output.
High WIP Accumulation and Loss of Floor Space: Because the production speeds of independent milling, drilling, and tapping centers are mismatched, thousands of half-finished parts accumulate in plastic bins on the shop floor. This high Work-in-Process (WIP) tracking burden complicates quality control.
JIA KUN's Solution: Multi-Station Synchronous Single-Setup Machining
JIA KUN Machinery’s automated production line condenses multiple separate manufacturing phases into a singular, lightning-fast closed-loop cycle of approximately 20 to 25 seconds per piece.
[Automatic Bar/Stock Feeding] ➔ [Multi-Station Synchronous Indexing] ➔ [Simultaneous Turning, Drilling & Tapping] ➔ [Automated Finished Ejection]
1. Integrated Automatic Material Feeding System
The production cycle begins at the heavy-duty automated raw material feeder. Raw stock or specialized profiles are continuously and automatically pushed directly into the machine's internal processing zone. This eliminates manual loading intervals, ensuring a constant, reliable material supply to the internal workholding matrix.
2. Multi-Station Synchronous Processing Architecture
Inside the machine's rugged, fully enclosed enclosure lies a sophisticated multi-station synchronous tooling array. Instead of a single tool cutting a single part, multiple specialized tool spindles operate simultaneously on different workpieces staged along an indexed workholding platform. Within a single locked mechanical setup, the machine seamlessly coordinates:
High-rigidity profiling and precision outer contour turning.
Concentric center hole drilling and specialized interior counterboring.
High-torque, multi-angle internal threaded tapping.
Because the workpieces step through these stations under a unified mechanical index without ever breaking their original structural clamping reference, positional drift is completely eliminated, securing perfect concentricity and thread-to-face perpendicularity.
3. Rapid Unloading and Chip Evacuation
Immediately following the final tapping or cutoff phase, finished sleeve plates or adjustment nuts are automatically released into an integrated collection system. High-pressure cutting fluid and specialized air-blast networks instantly flush out metal chips, keeping the internal machining area pristine for the subsequent cycle and guaranteeing scratch-free surface cosmetics.
Key Technical Advantages of the JIA KUN Headset Parts Line
Blazing Fast, Predictable Takt Time: Operating at a highly optimized cycle time of 20–25 seconds per piece, this system delivers the massive daily volumes needed to fulfill contracts for international original equipment manufacturers (OEMs) and high-volume bicycle assembly plants.
Drastic Reduction in Direct Labor Dependencies: By combining material infeed, multi-axis turning, multi-spindle drilling, and automatic tapping into a single automated block, the human element is entirely removed from the cutting loop. One technician can easily monitor a large bank of multiple JIA KUN systems.
Absolute Clamping Consistency: Standardized mechanical indexing replaces variable human loading technique. The uniform holding force and rigid reference positioning remain identical across continuous 24/7 production shifts, slashing internal scrap rates to near-zero levels.
Compact Footprint with High Performance: Compared to operating three or four standalone CNC lathes and drilling setups, this highly integrated multi-station cell consumes a fraction of your valuable factory floor space, maximizing your facility's operational layout efficiency.
Optimize Your Small Hardware Production Scale with JIA KUN
Whether your factory floor is expanding production capacity on upper sleeve plates, lower shim washers, stem adjusting nuts, or specialized suspension components, JIA KUN Machinery provides the precise system integration and custom tool design your business needs to stay competitive.
Insulate your manufacturing facility from labor volatility and secure absolute product consistency. Contact JIA KUN Machinery today to consult with our industrial automation engineering team, share your component engineering drawings, and receive a customized B2B technical assessment for your production upgrade.
