Integrated Rotary and Gantry Automation: Revolutionizing High-Volume Bicycle Seat Clamp Production
Integrated Rotary and Gantry Automation: Revolutionizing High-Volume Bicycle Seat Clamp Production
In the competitive B2B bicycle manufacturing sector, high-volume production of crucial structural components requires absolute process control. The Bicycle Seat Clamp (or seatpost clamp) is a vital hardware component responsible for securing the seatpost inside the frame under intense vibrational load.
Machining a premium seat clamp requires a highly demanding multitasking sequence: turning the outer profile, drilling precise cross-holes for the quick-release or hex bolt, milling the expansion slot gap, and cleanly executing the final cutoff.
When factories attempt to process these intricate features across separate individual machine groups, material flow slows down significantly. Moving components manually between standalone equipment inevitably bottlenecks factory throughput.
To break through these challenges and maximize capacity, JIA KUN Machinery has engineered the Bicycle Seat Clamp Multi-Station Machining Line. By integrating heavy-duty automatic profile raw material feeding, a high-speed overhead gantry robot, and a multi-station rotary indexing transfer system, this unified line delivers precise single-setup complete machining for core structural bicycle hardware.

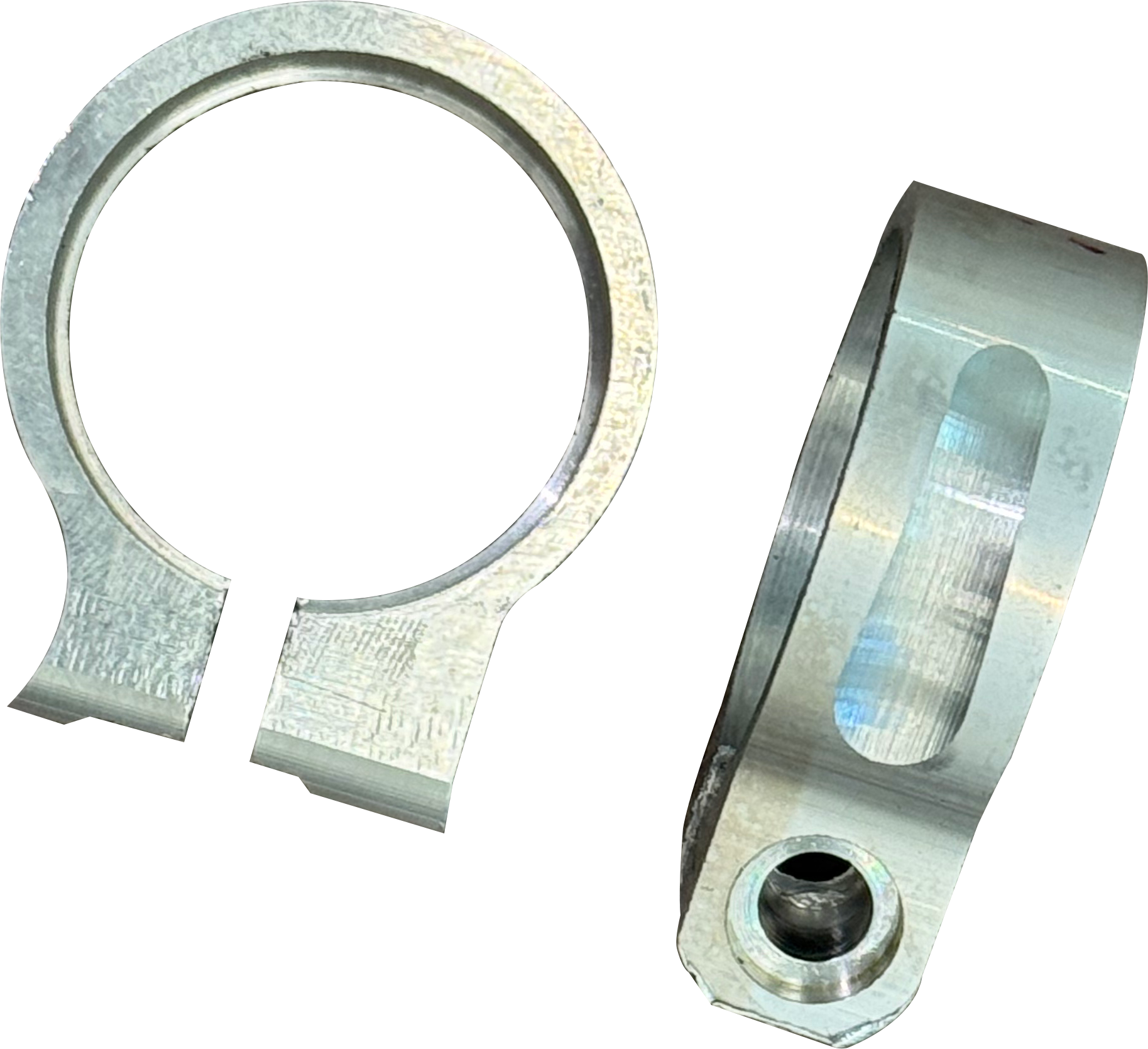

Seat Post Clamp
The Operational Bottlenecks of Scattered Machining Cells
Relying on scattered individual machinery setups to produce irregular bicycle seat clamps manually introduces several major manufacturing liabilities:
Accumulated Repositioning Errors: Moving a part manually from a standard lathe chuck to a separate milling or drilling fixture shifts the physical reference points. This repositioning variance compromises the precise geometric alignment between the bored bolt hole and the milled expansion gap slot.
Inflated Work-in-Process (WIP) and Disjointed Takt Time: Because processing times vary between independent turning, drilling, and slotting setups, massive volumes of half-finished components pile up on the shop floor. This high WIP tracking burden complicates production scheduling.
Elevated Labor Costs and Surface Scratches: High-end bicycle seat clamps demand a pristine outer surface prior to aesthetic color anodizing. Manually loading tiny hardware components into separate jaws repeatedly introduces frequent scratches and dents, resulting in high scrap rates.
JIA KUN's Solution: Closed-Loop Gantry-Linked Rotary Automation
JIA KUN Machinery’s automated production line condenses a complete series of forming and cutting operations into a singular, rapid closed-loop cycle of approximately 20 seconds per piece.
[Automatic Stock Long Feeder] ➔ [Overhead Gantry Rigid Indexing] ➔ [Multi-Station Rotary Synced Processing] ➔ [Simultaneous Turning, Drilling & Milling] ➔ [Integrated Cutoff & Outfeed]
1. Integrated Gantry Robot and Long-Stock Feeding
The manufacturing sequence begins at the automated long-stock profiling material feeder channel. Raw alloy material bars or customized extrusion profiles are continuously and automatically pushed directly into the machine's primary processing zone. The integrated overhead gantry robot functions as the main backbone of the line, utilizing non-marring specialized pneumatic grippers to execute high-speed inter-station transfers with sub-millimeter precision.
2. Multi-Station Rotary Synchronous Processing Block
Inside the rugged, fully enclosed enclosure lies an advanced multi-station rotary indexing system. Instead of a single tool cutting a single part, multiple specialized tool spindles operate simultaneously on different workpieces staged along a centrally indexed workholding platform. Within a single locked mechanical setup, the system seamlessly coordinates:
High-rigidity profiling and precision outer contour turning.
Concentric bolt cross-hole drilling and precise counterboring.
High-torque expansion slot gap milling.
Seamless integrated part cutoff.
Because the workpieces step through these stations under a unified mechanical index without ever breaking their original structural clamping reference, positional drift is completely eliminated, securing perfect concentricity and perpendicularity.
3. Automated Condition Conditioning & Clean Ejection
Immediately following the final integrated cutoff phase, completed seat clamps are automatically released into an organized collection outfeed system. High-pressure cutting fluid and specialized air-blast networks instantly flush out metal chips, keeping the internal machining area pristine for the subsequent cycle and guaranteeing scratch-free surface cosmetics.
Key Technical Advantages of the JIA KUN Seat Clamp Production Line
Blazing Fast, Predictable Takt Time: Operating at a highly optimized cycle time of up to 20 seconds per piece (depending on part design and process parameters), this line delivers the massive daily volumes needed to fulfill contracts for international original equipment manufacturers (OEMs) and high-volume bicycle assembly plants.
Drastic Reduction in Direct Labor Dependencies: By combining material infeed, gantry transfer, multi-axis turning, multi-spindle drilling, automatic milling, and cutoff into a single automated block, the human element is entirely removed from the cutting loop. One technician can easily manage multiple connected JIA KUN lines.
Perfect Clamping Consistency and Higher Yield: Standardized mechanical indexing replaces variable human loading technique. The uniform holding force and rigid reference positioning remain identical across continuous 24/7 production shifts, slashing internal scrap rates to near-zero levels.
Compact Footprint with High Performance: Compared to operating four separate standalone CNC lathes, drill presses, and slotting setups, this highly integrated multi-station cell consumes a fraction of your valuable factory floor space, maximizing your facility's operational layout efficiency.
Scale Your Component Production Capabilities with JIA KUN
Whether your manufacturing facility is scaling up production on premium dropper seatpost heads, specialized dropper post inner tubes, or high-volume bicycle seat clamps, JIA KUN Machinery delivers the system integration expertise your business needs to stay ahead.
Eliminate the hidden costs of manual material handling and step into highly automated continuous mass production. Contact JIA KUN Machinery today to consult with our industrial automation engineering team, share your component CAD drawings, and receive a comprehensive B2B technical assessment for your production upgrade.
